In stock V300B5H200A L 200 Watt Fully Isolated Vicor DC/DC 300 Volt (180V to 375V) to 5 volt Converter half bricks at 1/2 price

300V to 5V converter full brick DCDC converters with high voltage input, 72V, 120 VDC, 250VDC,  300VDC inputs
More DC/DC converters with high voltage input

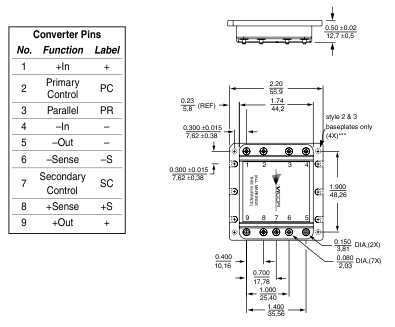

diagram of the V300B5H200AL layout and pinout
_________________________________________________________________________

This is a fully isolated 300V to 5V DC/DC converter module, or "half-brick." It has 3000 volts isolation from input to output, has a standard footprint, and a wide voltage input of 180VDC-375VDC. The 5 Volts output is at 40Amps, giving 200 watts.


The short circuit protection is done by an automatic recovery "hiccough mode," meaning that when it detects an overload it tries to come on, then if the fault is still there it will shut off. This happens continually until the fault is corrected.

This is perfect for down converting 300 Volts from battery, electric vehicle or steel mill voltage sources to 5 Volts.
These are high quality, brand name USA converters, NAFTA eligible .
Price $80.00 add_to_cart.gif

Isolated DC converter half-brick circuit board mount modules.


Summary of features. For full data click on the data sheet link.
Characteristic Vicor UL c(RU)us CE, TUV listed
V300B5H200A Input 300V nominal 300 Volts 180V-375V PDF Data Sheet
Input 180VDC-375VDC
Output 5V 40Amps 200W
Setpoint Accuracy 1% typical, 3% maximum
Line and Load Regulation 0.05% typical, 0.2% maximum using sense lines
Form Factor 51mm half-brick
Isolation 3000V input-output, 1500V to case
Remote voltage sensing Yes
Parallel operation Can be paralleled to obtain 400W, 600W, 800W, etc. See PDF data sheet
Efficiency up to 83% efficient
Temperature Range -40°C to + 100°C operating
Trim Range The trim range is ±10%
Weight 102 grams 7.4 oz.
Size 58 x 56 x 12.7 mm 4.6" x 2.2" x 0.5"
Country of Origin USA, NAFTA eligible

PC Pin: Grounding this pin turns the output off.

Input Voltage Output Amps Input Current Output Volts Output Watts
180 VDC 40 A 1.4 A 5V 200W
200 VDC 40 A 1.2 A 5V 200W
220 VDC 40 A 1.14A 5V 200W
240 VDC 40 A 1.05 A 5V 200W
250 VDC 40 A 1A 5V 200W
260 VDC 40 A 0.96A 5V 200W
280 VDC 40A 0.9A 5V 200W
300 VDC 40A 0.83A 5V 200W
300 VDC 40A 0.8A 5V 200W
320 VDC 40A 0.78A 5V 200W
340 VDC 40A 0.73A 5V 200W
350 VDC 40A 0.71A 5V 200W
360 VDC 40A 0.69A 5V 200W
375 VDC 40A 0.66A 5V 200W

Advantages:

OEM Battery Chargers Inexpensive High Current Switchmode DC/DC Converter.

OEM Battery Chargers High efficiency approximately 85.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Extra Wide input voltage range.
