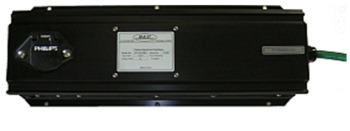

UTC2412BD trailer controller, 12V or 24V vehicle (auto detect), 12V trailer

	7 Pin SAE 560 24V	6 foot cable with ring terminals	For more 12V/24V and 24V/12V trailer interface controllers click here
	Input Connector	Output Connector

Model	Price
UTC2412-BD Trailer Electrical Interface with 7 Pin SAE 560 input	$1274 Allow 5-7 Weeks for manufacture

Trailer Voltage Converter Interface Design Features

Wide Range Input Voltage 21V-30V, or 11V-16V, auto detect
High Efficiency Design
Hi Ingress Rating, IP 676
Low Voltage cutout
High Voltage cutout
Electronically Current Limited
Thermally Protected
Low No Load Power Consumption
All Aluminum Anodized Housing
6 point mounting
Optional SAE 560 or NATO MS 75021-1 Input Connection
Output via 12 foot cable

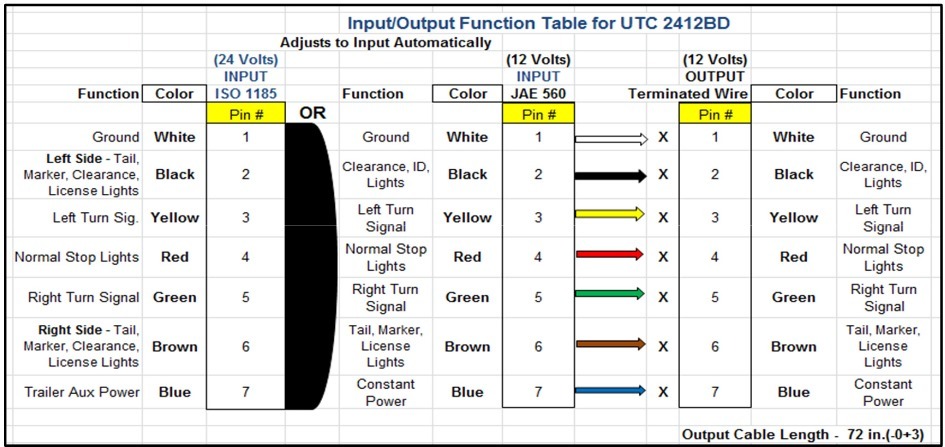

input/output table for UTC2412-BD trailer controller

INPUT VOLTAGE RANGE	21-30 VDC or 11-16 VDC auto adjustment
INPUT CURRENT	15A maximum. per Circuit
OUTPUT VOLTAGE	13.6 ± 0.3 V per circuit
OUTPUT CURRENT	15A per line (BRN, BLK, RED, BLUE) 10A per line (YEL, GRN)
OUTPUT REGULATION	0.2V over entire input voltage and load current range

Weatherproof	To IP676 level, up to 1 meter immersion in water
OPERATING TEMPERATURE STORAGE TEMPERATURE	-40C to +60C -60C to +125C
OVERLOAD PROTECTION	Electronic
EFFICIENCY	92% Typical
CONSTRUCTION	BLACK ANODIZED ALUMINUM
WEIGHT	14 lbs./ 6.5 kg. total (cable included)

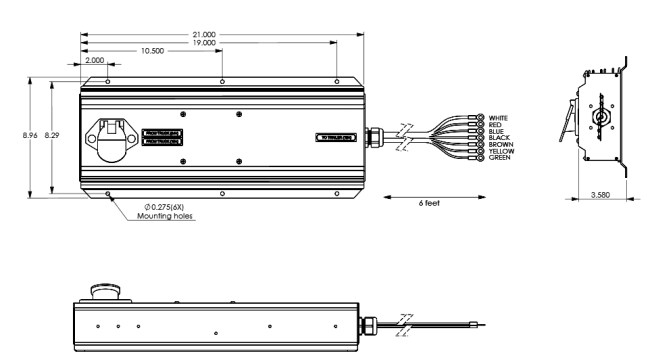

drawing of the UDC2412-BD trailer interface controller
