DC Input mini-ITX Style Power Supplies

DC Input mini-ITX style power supply, 12 volts input

Note : current production device has cables for output A 10 inch (24 cm) cable terminating
in one 20-pin motherboard connector and two 4-pin hard disk power connectors as shown.
Direct mount available upon quantity request.
DC Input mini-ITX Style power supplies

12 volt input ATX dc to dc power supply for cars, busses, boats, and solar installations

Click here for 12 Volts DC Input ATX Power Supplies suitable for use in cars

These are minature power supplies with 12 volt DC input. They are useful for applications where battery or solar power is available, such as car computers, and homemade MPX players. These are regulated switching power converters. Includes wide voltage range input versions 10.8-20 VDC, suitable for car PC and automotive computer applications!

Note that the PST-ITX-1 mini-itx version does not have a regulated +12 volt output, but passes the 12 volts of the supply voltage through to the motherboard. This makes it difficult to use for automotive applications. The wide input range unit is the PST-ITX-2, which has an input range of 10.8 to 20 volts. If you need regulated 12 volts, then you should choose the PST-ITX-2.

Quantity	Price PST-ITX-3 power board.	20 pin ATX adapter cable.	120 VAC adapter (120 watts peak), 12 volts , 6.6 amps output	12 volt, 18 Amp desktop AC adpater, 216 Watt Adapter
1-99	$30.00 No longer stocked, sorry.	$6.00	12 Volt 6600mAH (80 Watt) switchmode power supply	12 V 18amp 220 watt power supply for mini PCs
100+

PST-ITX-3
PW-200-V

Note : current production device is direct plug-in, but cables are available if direct-plug-in to the mother board is not desireable. Board includes the 4 pin 12 volt P4 motherboard connector (not shown here).

PST-ITX-4 or PW-200-M identical electrical specifications, different form factor click here.

Dimensions (mm)

155 mm x 57 mm x 30 mm
6.1 x 2.25 x 1.2 inches

Dimensions (mm)

Mounting

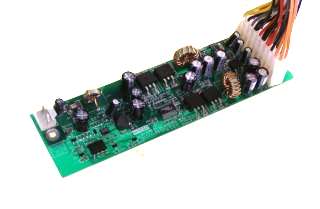

Two mounting holes 3.7 mm (5/32 inch) diameter, 144.5 mm (5.7 inches) apart as seen in photo.

Mounting

Input Voltage Required (V)

11.4 to 12.6V (Note: if +12 volt output isn't used the input range is 7 to 22 volts)

Input Voltage Required (V)

5.5 x 2.5 mm Barrel

Maximum Output (W)

Max 205 Watts

Maximum Output (W)

Output Voltage

Volts

+5Vsb

+3.3V

+5V

+12V

-12V

Output Voltage

Current

Amps

2A
10A Peak

6A
10A Peak

12A
13.5A Peak

0.1A
0.2A Peak

Current

Minimum Current

Power Output

For Pinout Diagram Click Here
Click here to read the PW-200-V manual

Cables

Direct plug-in as shown, adapter cable available below.

4 pin ATX12 connector included

Cables

Advantages:

DC input mini-ITX power supply.

High efficiency car PC power supply.

Excellent line and load regulation.
