Index of DC Input battery chargers: 6V, 12V, 24V, 36V, 48V

DC Source Battery Charger for wheelchairs, scooters, bicycles, and wheel chairs

Four stage intelligent chargers with 12 Volt, 24 Volt, or 48 Volt inputs, to charge 6 Volt, 12 Volt and 24 Volt lead acid batteries, (flooded, VRLA, Gel, or AGM.) Charge a wheel chair, bicycle or scooter in your car or van.

You don't always have AC power to charge batteries with. Here are some battery chargers that use DC input power.

Model Number Input voltage (range) Charge voltage nominal Link Description

PST-DCCP

Up to 36V <1V to 32V, as long as the maximum charge voltage is at least 1V lower than the source voltage. constant current DC/DC converter Can taper charge a lead acid or lithium ion pack at up to 5 Amps constant current.

PST-D60CCP

Up to 58V <1 to 55V, as long as the maximum output voltage is at least 1 volt lower than the source voltage 48V input constant current DC converter with adjustable voltage Up to 3.5 amps, charge lead acid, lithium ion, lithium iron phosphate batteries and supercapacitors

PST-BC1206-15

12 Volts (10-15VDC) 6 Volt sealed lead acid batteries Charge 6 volt batteries from a 12 volt source 7.5 Amp charger for 6 volt batteries using 12 volt input

PST-BC1212-15

12 Volts (10-15VDC) 12 Volt sealed lead acid batteries Charge a 12 volt lead acid battery from a 10V to 15V source These 4 stage chargers can be used to charge 12 volt batteries from larger 12 volt batteries, or automobile power points (cigarette lighter sockets). Great for emergencies, camping, boating, e-bikes, etc.

PBCD315-12-12

12V 12V sealed lead acid batteries Battery charger, 12 volt 20 amp with 12 volt input Heavy duty, marine and industrial 12VDC input 12V battery chargers

PBCD800-12-12

12V
(10.4-14VDC)
12 volt lead acid batteries, 50A 50 Amp 12V lead acid charger with 12 VDC input High reliability 12V to 12V lead acid battery charger at 600 Watts

PSTC1212019U

12V
(10 to 18V)
16V lead acid batteries, 6 amps 12 volt to 16 volt DC to DC battery charger Charge a separate 16V battery in your car

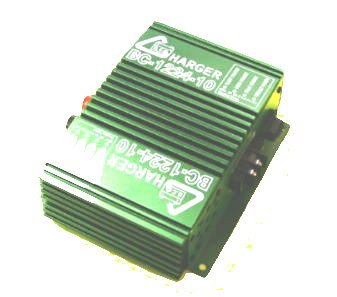

PST-BC1224-10

12 Volts (10-15VDC) 24 Volt sealed lead acid batteries. in-car DC input chargers for wheel chairs and wheelchairs, 12 volt input to charge a 24 volt battery High power 4-stage intelligent chargers for charging wheelchairs and scooters in your van or car.

PBCD315-12-24

12V (11-15VDC) 24V lead acid batteries, 7.5A fully isolated Battery charger, 24 volt 7.5 amp with 12 volt input Fully isolated 12V input to 24V battery charger 7.5 Amps

PBCD305-12-24

12V
(10.5-18VDC)
24V lead acid batteries, 12.5 A 24V battery charger DC/DC with 12V input, 15 amps Heavy duty, marine, and military grades

PBCD605-12-24

12V
(11-15V)
Charge 24V batteries from a 12V source at 30 Amps 12V to 24V DC/DC converter, heavy duty industrial Heavy duty, marine and military grades

PBCD805-12-24

12VDC
(10.5-14VDC)
IP66 Waterproof 24V lead acid batteries, 30 A 30A 24V lead acid charger with 12VDC input Waterproof, large, robust, DC input heavy duty charger for 24 volt batteries from a 12V source

PSEC-6929

12VDC
(11-16VDC)
Charge 24V batteries from 12 volt source at 45 amps 12V input 24V 45A 45 Amp 24V battery charger for lead acid and lithium iron phosphate batteries

PBCD315-12-48

12VDC (11-16V) 48V lead acid batteries, Battery charger, 24 volt 10 amp, 20A or 40A with 24 volt input Charges a 48V battery from a 12V source at 250W

PSEC-6958

12 VDC
(11-16.5V)
48V lead acid or lithium iron phosphate batteries 12V dc input 48V battery charger Charges a 48V battery from a 12V source at 1250 watts

PST-BC2412-15

24 Volts 12 Volt sealed lead acid batteries Charger for 12 volt sealed lead acid, gel cell, or VRLA SLA batteries from a 24 volt  battery, truck, or golf cart High power 4-stage intelligent chargers for charging 12 volt batteries from a 24 volt forklift, truck, or golf cart

PBCH10-12

24 Volts, 36 Volts
(20V - 80V)
12 Volt lead acid batteries 10 Amps, heavy duty industrial 24V to 12V DC/DC battery charger, heavy duty industrial and military 10 Amp Heavy Duty, Industrial, Marine, and Military DC/DC chargers

PST-BC2424-10

24 Volts 24 Volt sealed lead acid batteries. Charger for 24 volt sealed lead acid, gel cell, or VRLA SLA batteries from a 24 volt  battery, truck, or golf cart High power 4-stage intelligent chargers for charging 24 volt batteries from a 24 volt forklift, truck, or golf cart

PBCD180-32-24

24 Volts
(also 32V, 36V, or 38V input)
24V lead acid batteries, heavy duty industrial, marine, military versions heavy duty DC/DC battery charger 24V to 24 volt 7.5A 24V DC input battery charger for high reliability applications

PBCD315-24-24
PBCD615-24-24
PBCD1015-24-24

24 Volts 24V lead acid batteries at 10A, 20A and 40A Battery charger, 24 volt 10 amp, 20A or 40A with 24 volt input 300 watt, 600 watt, and 1000 watt DC/DC battery charges for 24v batteries

PBCD315-24-48, PBCD615-24-48, PBCD1015-24-48

24 Volts input 48 Volt lead acid batteries 10 amp 24V to 48V DC/DC converter, heavy duty industrial Three 24V to 48V battery chargers, 5A, 10, 20A output current

PSEC-7058

24 Volts input 48V lead acid, lithium iron phosphate, or lithium ion battery packs, 25A output PSEC-7058 24V input 48V battery charger for lead acid, LiFEPO4 and LiIon Up to 1500 watts for LiIon, lead acid and LiFePO4 batteries

PBCH10-12

32 Volts input
36 Volts input
12V lead acid batteries 36V to 12V DC/DC battery charger, 36 Volts input, 32 volts input 10 amp charger for 12V batteries with 32V or 36V (20V-80V) input

PBCH10-12

48 Volts input 12V lead acid batteries, 10 amp charge rate 48V input to 12V battery DC/DC battery charger, 36 Volts input, 32 volts input 10 amp charger for 12V batteries with 48V (20V-80V) input

PBCD315-48-12

48V (40V to 60V) 12V lead acid batteries, 20 amp charge rate 48V to 12V DC/DC battery charger, heavy duty industrial and military 20 Amp battery charger for 12 volt batteries,

PBCH10-24

48V (30V to 80V) input 24V lead acid batteries, 10 amp charge rate 48V input to 24V battery DC/DC battery charger, 36 Volts input, 32 volts input 10 amp battery chargers for 24V batteries from a 48V source

PBCD315-48-24

48 Volts
(40 volts to 60 volts)
24 volt lead acid batteries DC input battery charger, 48 volts input, 24 volt battery, 10 amps 10 amp 24 volt charger with 48 volt input

PBCD1015-48-12

48V (40V to 60V) 12V lead acid batteries, 60 Amp charge rate 60 amp heavy duty DC/DC battery charger 48VDC to 12VDC 60 Amp battery charger for 12 volt batteries, DC input, heavy duty, marine, and military grades

48V DC input battery chargers for 48V batteries

48V (40 to 60) 48 Volt battery, at 5, 10, or 20 amps 5, 10, and 20 amp heavy duty DC/DC battery charger 48 VDC to 48 VDC Charges 48 volt batteries from a 48 volt source

PBCD72-72-12

72V (65V to 100VDC) 12 Volt battery or 24 volt battery, 5.4A charge rate 72V to 12V DC/DC battery charger, heavy duty industrial and military Charges 12 volt batteries form 72V source, 5.4 Amps

PBCD315-72-12

72VDC (60V) to 90V 12 Volt 20 amp charger 72V to 12V DC/DC battery charger, heavy duty industrial and military Charges 12 volt batteries in locomotives, trains, floats and other 72 volt systems, 20 Amps

PBCD315-72-24

72VDC (60V) to 90V 24V 10A charger 72V to 24 volt  DC/DC battery charger, heavy duty industrial, marine and military Charges 24V lead acid batteries from a 60V-90V source

PBCD315-72-48

72VDC (60V) to 90V 48Volt 5Amp Charger 72V to 48 volt  DC/DC battery charger, heavy duty industrial, marine and military Charges 48Volt batteries from 60 Volt - 90 Volt systems

PBCD310-110, 250,300-12

110VDC
250VDC
300VDC input
12V 20 amp charger electric vehicle auxiliary battery charger,  12 volt high power with 110VDC, 250VDC or 300VDC input Allows use of a 12 volt battery to power lights and radios in electric cars

PBCD310-110, 250,300-24

110VDC
250VDC
300VDC input
24V 10A charger Battery charger, 24 volt high power with 110VDC, 250VDC, or 300VDC input Allows charging of 24 volt batteries with high voltage input

BCD1050 and BCD1505 12V series

100-400VDC universal input 12V 300W, 1000W, 1500W versions DC/DC 12V charger, 100V to 400V VDC input, 12VDC output, 300 volts to 12 volts 1200 watts, 1500 watts Includes water tight IP66 versions

BCD1050 and BCD1505 32V, 48V and 72V series

100-400VDC universal input 32V, 48V and 72V 1000W, 1500W versions DC/DC 48 volt and 72 volt chargers, 100V to 400V VDC input, 12VDC output, 300 volts to 48 volts 1200 watts, 1500 watts Includes waterproof IP66 versions

Remote Charging Boards

  These microprocessor controlled board charge a 12 volt lead acid battery from a low voltage DC input that can range from 18 to 28 volts. This lets the charger be positioned at a remote battery while being powered with low voltage DC up to 1000 feet away.

Rapid Charger for Ni-Mh/Ni-Cd Batteries

  This rapid battery charger charges 2 or 4 AA and AAA Ni-Mh/Ni-Cd rechargeable batteries quickly and conveniently from home or car.

PV System Charge Controllers

  12 volt solar charge controllers for charging lead acid batteries with solar panels Solar Energy Battery Charge Controller

Applications:

OEM Battery Chargers Charging wheel chairs, bicycles, and scooters in a car, van or bus.

OEM Battery Chargers Microprocessor controlled 4 stage adaptive charging algorithm suitable for Gel, Absorbed Glass Mat, VRLA, or flooded lead acid batteries.

OEM Battery Chargers Fully automatic without intervention.

OEM Battery Chargers Two current settings for different battery capacity. Select "low" if the battery is less than 7 AH in capacity.

OEM Battery Chargers Output short circuit and battery polarity protections. Input low voltage and high voltage connections.

OEM Battery Chargers Charging 24 volt batteries from a vehicle.

OEM Battery Chargers Charging 24 volt "jump start" batteries from a 12 volt tow truck or service vehicle.

OEM Battery Chargers Charging 24 volt electric bicycle from a vehicle.

OEM Power Supplies Note: For the higher current models the input current is too high for a cigarette lighter socket to handle. This charger must be wired into the battery-alternator circuit of your car or van.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Four stage charge--constant current, constant voltage, fill, and float. This charges your battery the fastest way possible without damaging the battery. It is suitable for any size 24 volt lead acid battery.
