48 V DC Input PC ATX-12 Style Power Supplies, 750 Watt, 170mm long

For more 48 volt products from PowerStream click here:

DC Input ATX style power supply, 48 volts input, 750W

750W DC Input ATX-12 Style power supply with 37V to 71V input, Autonomous vehicle computer power supply


12 volt input DC ATX power supplies	24 volt input DC ATX power supplies	More 48 volt DC input ATX Power Supplies	120VDC input ATX Power Supplies

These are industrial grade power supplies with -48 volt DC input. They are useful for applications where battery or solar power is available. These are regulated switching power converters. For use in telecom applications and other situations where the supply voltage is between -38 to -72 volts.

Quantity	Price PSTC-48750
1 - 10	$498 May take 6 weeks lead time if not in stock
11-100	$455

Features

1. CE Marked
2. DC powered ATX 2.03 version 20 pin connector included (ATX-12V)
3. Remote ON/OFF
4. Built in EMI Filter
5. "Power Good" signal
6. Terminal strip for DC input with polarity protection
7. Click here for another -48VDC input ATX-12 power supply
8. DC 48 volt nominal, 36-72 VDC INPUT. Wide range of input voltages includes 36, 40, 48, 60, and 72 volts in one unit.
9. Remote Sense for Main Output
10.100% ATE Test
11.100% Hi-pot Test
12.100% Burn-in
13. Warranty : One year

Summary Specs.	Input Range	Max Power	+5 V	+3.3 V	+12 V	-5 V	- 12 V	+5 V SB
PSTC-48750	37-71 VDC	750 W	60 A	35 A	48 A	N/A	1 A	3 A

PSTC-48750 48 volt DC input ATX-12 power supply
Output Voltage	Regulation			Output Current		Ripple & Noise
	Load	Line	Cross	750W
				Min.	Max.
+5V	±5%	±1%	±5%	0A	60 Amps	50mV
+12V				0A	48 Amps	120mV
+3.3V				0A	35 Amps	50mV
-5V				N/A	N/A	N/A
-12V	±8%			0A	1 Amp	120mV
+5VSB	±5%			0A	3 Amps	50mV
Total combined power on +3.3V & +5V				300 Watts		Watts
Total continuous output power				750
Output cable length				530mm or 20.9 inches
ATX 24 Pin x1: Molex29-01-2240 or equivalent ? +12V(P4) 4 pin x1: Molex 39-01-2040 or equivalent ? HDD, DVD 4 pin x8: Molex 8981-04P or equivalent FDD 4 pin x1: AMP171822-4 or equivalent Serial ATA x2: Molex 675820000 or equivalent Process EPS 8 Pins x1 Molex 39-01-2080 or equivalent
				For Pinout Diagram Click Here

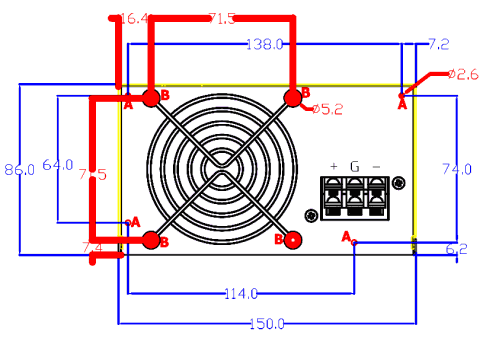

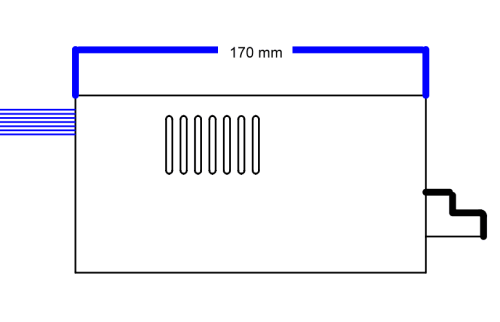

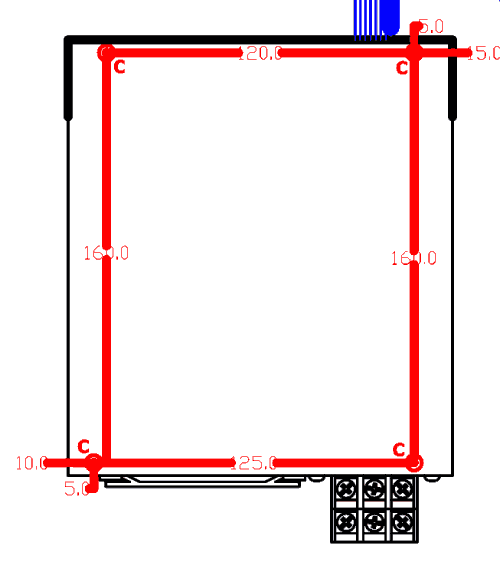

Dimensions of ATX-12 computer power supply with -48 or +48 volt input:

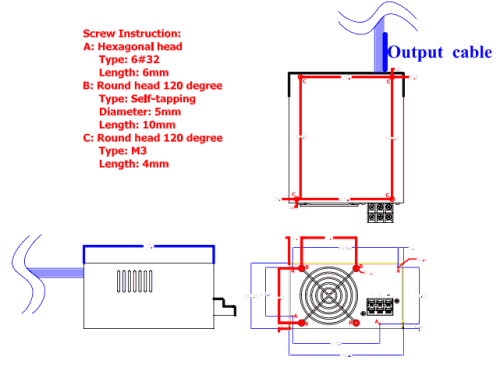

sketch of 750W ATX power supply

Advantages:

48 Volts DC input PSII Form Factor ATX Supply.

High efficiency PC power supply for telecom use..

Excellent line and load regulation.

Wide input voltage range.
