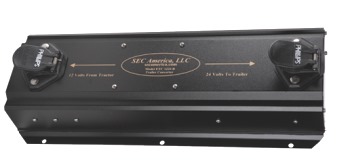

ETC1224-B trailer controller, 12V vehicle, 24V trailer

trailer controller, 12V 24V  7-pin-sae-560 trailer connector
7 Pin SAE 560 12V
7-pin-sae-560 trailer connector
7 Pin SAE 560 24V ISO1185
  Input Connector Output Connector
12 volt and 24 volt trailer converters, military, European, USA
For more 12V/24V and 24V/12V trailer interface controllers click here
Model Price
ETC1224B Trailer Electrical Interface 12V vehicles, 24V trailer $984
ETC 1224B is an controller interface between a American 12 Volt commercial towing vehicle and a 24 Volt European trailer. ETC 1224B has six independent dc converters capable of supplying a total power of 800W at 24V. The supply of power to the trailer ABS system and its various lighting circuits is achieved through the same trailer connector pins usually designated for each function. The controller's compatible connectors have no requirement for hard wiring and quick and convenient installation. ETC 1224B is compact and lightweight, weighing 15 pounds. The IP676 weather resistant ETC1224B can be mounted to either the towing vehicle chassis or the front face of the trailer.

Trailer Voltage Converter Interface Design Features

  • Wide Range Input Voltage 11V-17V, can withstand up to 24V
  • High Efficiency Design
  • Hi Ingress Rating, IP 676
  • Low Voltage cutout
  • High Voltage cutout
  • Electronically Current Limited
  • Thermally Protected
  • Low No-Load Power Consumption
  • Aluminum Anodized Housing
  • 6-point mounting
  • SAE 560 Input Connection
  • SAE 560 Output Connection
input/output table for ETC1224B trailer controller
INPUT VOLTAGE RANGE 11-17 VDC
Will withstand up to 24V
INPUT CURRENT 20A maximum. per Circuit
OUTPUT VOLTAGE 25.6 ± 0.3 V per circuit
OUTPUT CURRENT  10A per line
OUTPUT REGULATION 0.2V over entire input voltage and load current range
OPERATING TEMPERATURE

STORAGE TEMPERATURE
-40C to +60C
-60C to +125C
OVERLOAD PROTECTION Electronic
EFFICIENCY 92% Typical
CONSTRUCTION BLACK ANODIZED ALUMINUM
Weatherproof To IP676 level, up to 1 meter immersion in water
WEIGHT 14 lbs./ 6.5 kg. total
(cable included)

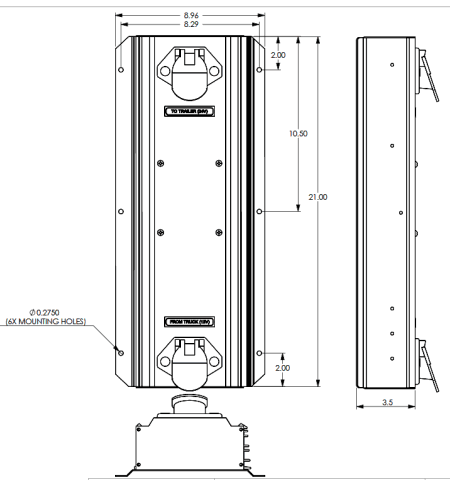

drawing of the UDC2412-BD trailer interface controller

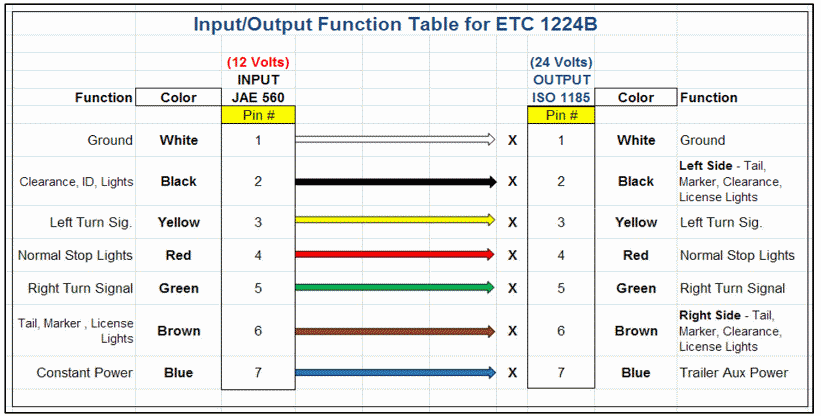

Input / Output Function Table (for more insight see the colored table above)





(12 Volts)

(24 Volts)







INPUT

OUTPUT

Function

Color

JAE 560

ISO 1185

Color     Function

Pin #

Pin #



Ground

White

1



White    Ground





Left Side - Tail,

Clearance, ID, Lights

Black

2

BlackMarker, Clearance,

License Lights
