Fully Isolated Heavy Duty Industrial and Military Grade 24 volt to 24 volt DC/DC Converters 20 Amp, 540 Watt. 5 year warranty.

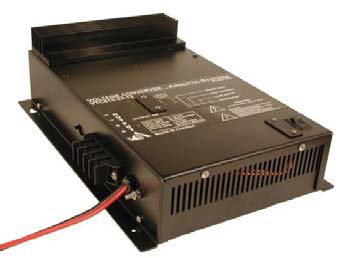

20 amp heavy duty DC/DC converter 24VDC to 24VDC
These are fully regulated switching power converters (switchmode), designed to provide regulated 24 volt power for equipment in 24 volt, and 28 volt, vehicles. These are attractive, reliable, robust DC/DC converters good for fork lifts, off-road, construction, military, marine and recreational equipment. They are ultra-quiet both electrically and acoustically.

To determine the amperage you need just add up the watts of all the equipment and divide by 24 volts.

These converters are fully isolated, so will work in positive ground or negative ground applications.
DC-DC Converters Heavy Duty
20 Amp
DC to DC Converter
24V to 24V DC/DC converter, heavy duty industrial		 Ruggedized and wide temperature range
20 Amp
DC to DC Converter24V to 24V DC/DC converter, heavy duty industrial
Part Number
and Price		 PVTC615-24-24
$938
Allow up to 10 days for manufacturing 		PVTC615X-24-24
$1080
Allow up to 13 days for manufacturing
Country of Origin Canada, NAFTA eligible
Input Voltage 20 to 35VDC
Max Input current at No Load < 410 mA
Output Voltage 27.2 VDC
(24V available, ask at time of order)
Output Voltage Adjustment ±1V typical
Max Output Current(s) 25 Amps
10 minutes maximum
Max Output Power Peak 680 watts
Max Output Power (continuous) 544 Watts
(20 Amps)
Duty Cycle 100% rated power 24 hours a day
Output current limit? Yes
Operating Temperature Range -25°C to +40°C -40°C to +55°C
Derating 2.5% per °C up to +50°C 2.5% per °C from +55°C to +85°C
Efficiency >85 %
Line Regulation <±0.5%
Load Regulation <±0.5%
Transient Response <2V for 50% surge
Switching frequency 60 kHz
Output ripple noise <50 mV rms
Noise inserted on the input terminals <50 mV rms
Isolation >1500 volts isolation from case to any terminal, >1500 Volts isolation input to output. Transient voltage suppression.
Remote power on/off Option
Digital Volt/Amp meter Option
Indicators Audio and visual indicators for constant current, low input voltage, low output voltage, over temperature. Dry Contact output failure relay.
Input Fuse 3 x 15A ATC
Connections Input #12 AWG wires
Output Screw terminals
Protection Over Voltage , Over Current, Short Circuit , Reverse Polarity , Over Load
Dimensions 368 x 259 x 109 mm
(14.5 x 10.2 x 4.3 inches)
Drawings Click Here for Drawing
Weight 3.2 Kg (7 lbs)
Audible Noise None
Typical service life 87000 hours
Warranty 5 years 1 Year
Approvals cETLus pending

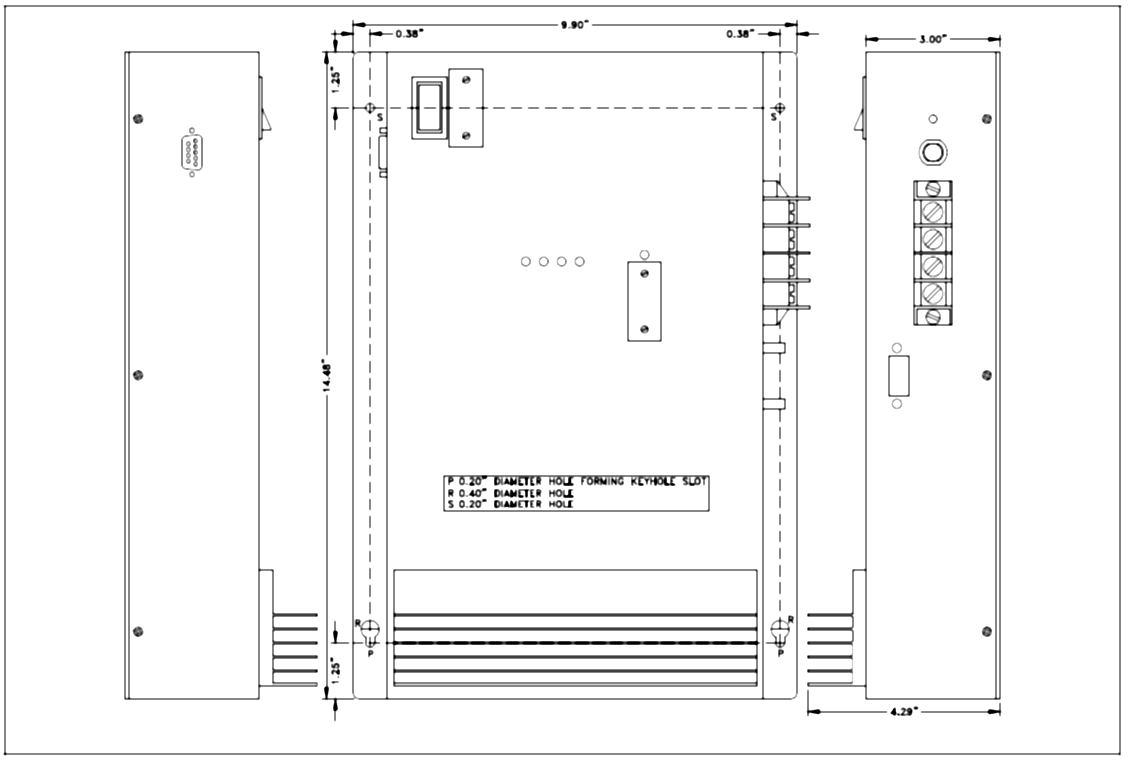

drawing of the PVTC615 showing dimensions3

How to use the dry contact relay

Dry Contact Relay: To use your dry contact output fail relay you must connect a 9-pin D connector to the unit. You must use pins one and six as is indicated on the remote connector diagram. The relay is factory preset to fail in the closed position when the low output LED and buzzer come on. If you wish to have the relay fail in the open position when the low output LED and buzzer come on, you must take the cover off the unit and move the jumper to the other position on J10. J10 is located next to the relay K1.

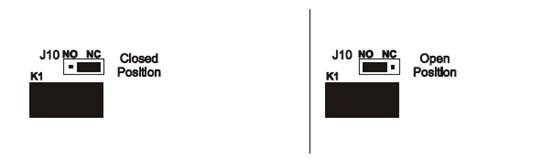

jumper position selection
To change the position of the jumper, first turn the unit off and disconnect the unit from both the power and load(s). Next, turn the unit on for 30 seconds to discharge the capacitors, then turn it off again. Remove the eight screws holding on the cover. Turn the unit upside down, remove the cover and locate J10. It will be next to the relay K1 as is shown in the above diagram. Simply move the jumper to the desired position as is shown in the above diagram. Replace the cover and re-install the eight cover screws. Reconnect the unit to the power and load(s).

Advantages:

OEM Battery Chargers Heavy Duty High Current Switchmode DC/DC Converters.

OEM Battery Chargers High efficiency.
