24 Volt to 48 Volt DC/DC Converter (Regulator)

 12 volt input to 48 volt output, 100 watt DC-DC converter power supplies 12V to 48V 12VDC to 48VDC
For the 12V to 48V DC converter

For more 48 volt products from PowerStream click here:

12 volt to 13.8V dc to dc converter regulator

150 Watt 24V to 48V DC/DC converter at low cost. Suitable for 48V boosting for use with automobile electronics, special purpose UPS, etc.

These DC/DC step up converters are useful for voltage conversion to operate 48 volt electronics in 24 volt vehicles, works well in telecommunication equipment, for example the Cisco Aironet 350 Bridge. They closely regulate the 48V output voltage over a wide range of input voltages and output powers.

Prices Quantity
1-10		 11-19 20-99 100-499
24 Volt to 48 Volt 3A DC/DC converter PST-DC2448-3 add_to_cart.gif  $110 $99.00 $79 $75

Specifications:

Model Number PST-DC2448-3
Input Voltage Range 20 VDC to 32 VDC
Input Current range Approximately 2x the output current drawn
Peak Output Power 240 Watts (1-5 minutes)
300 Watts less than 30 seconds
Peak Output Current 6.25 Amps
Continuous Current 3.125 Amps
Continuous Output Power 150 Watts
Output Voltage 48VDC
Ripple 240mV at full load
No-Load Overhead 40 mA at 24VDC input
Line Regulation 1%
Load Regulation 2%
Efficiency over 93%
Topology DC Boost
Isolation Not isolated, common grounds for input and output
Input Connection Screw terminals rated at 32A, accept 26-10AWG wires
Output Connection Screw terminals rated at 32A, accept 26-10AWG wires
Cooling Free air convection, can be mounted in any orientation
Protections: (1) Over temperature
(2) Over-voltage
(3) Short circuit, overload, auto recovery
Temperature -40°C to 65°C (-40 to 150°F)
Drawing Click here for dimensioned drawing
CAD model Click here for a 3-D CAD model
Dimensions 2.8 x 3.8 x 1.3 inches, length 5" including flanges
Weight 160 grams, 0.35 lbs

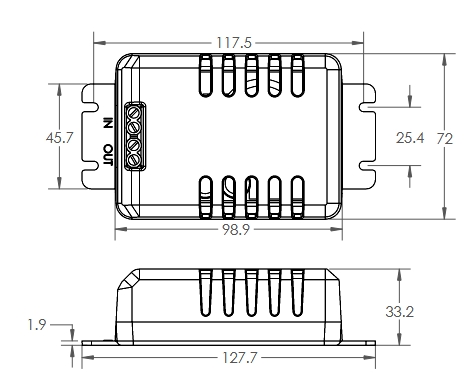

drawing of the dc2448-3

Advantages:

Inexpensive high current DC/DC converter stabilizes voltage in automotive applications that require 48 volts, for example the Cisco Aironet 350 Bridge.

The PST-DC2448 DC/DC Converter can be used to provide regulated 48V from a 24V sealed lead acid battery--excellent for special purpose UPS DC battery backups.

High efficiency DC/DC Converter >85%.
