These robust DC input
battery chargers have a wide operating temperature range, and use a DIN
terminal block for input and output connections. The wide input voltage range
allows use in 12V vehicle systems, and designed to allow the use of 48 volt
equipment in 12 volt, vehicles, marine, military, PLC, and cell tower
applications. These are attractive, reliable, robust DC/DC chargers good for
fork lifts, off-road, construction and recreational equipment. They are
relatively immune to vibration and shock.
To determine the output amps
you need just add up the watts of all the equipment and divide by 48V.
These converters have common negative ground (non-isolated) and can be
used for common ground and floating ground installations.
| DC-DC Converters |
25 amp
DC to DC battery charger
 |
Part Number
and Price |
PSEC-6958
$1375
 |
| Country of origin |
USA, NAFTA eligible |
| Nominal Input Voltage |
12VDC |
| Input Voltage range |
11 to 16 VDC |
| Max Input current at No Load |
<360 mA (<12mA when
remote is "off") |
| Output voltage |
48V nominal, 55.2V actual |
| Input current at full load |
130 Amps |
| Output voltage adjustment by removing the
front plate |
54.2VDC to 52.8 VDC
May be
programmed to charge lead acid, lithium iron phosphate, and lithium ion
batteries |
| Max Output Current(s) |
25 Amps |
| Max Output Power (continuous) |
1250W |
| Output current limit? |
Voltage reduction at current
limit |
| Operating Temperature Range at 100% load |
-40°C to
+50°C
Note: lithium batteries cannot safely be charged below zero
degrees C |
| Temperature derating |
Derate 1.5% per degree C over
40°C up to 60°C |
| Temperature shutdown |
Over temperature shutdown, auto
reset |
| Operating humidity |
0-95% non condensing |
| Altitude |
<6000 meters |
| Efficiency |
>92 % at rated
power
|
| Load Regulation |
<60mV |
| Switching frequency |
kHz |
| Output ripple noise |
<50 mV rms |
| Isolation |
Fully isolated between input
and output 2500VAC rms
Housing to input >1800VAC
Housing to output
>1800VAC |
| Remote power on/off |
Yes, through 12V terminal on
control block, may be connected to a 12V ignition switch |
| Remote voltage sense |
Yes. through two sense wires on
the connector |
| Ingress rating |
IP676, (dust tight, immersion
up to 1 meter depth, 1 Joule mechanical impact energy) |
| Connections |
DIN style terminal block |
| Protection |
Low input voltage < 10.5
+/-0.3 VDC (adjustable up to 13VDC)
High input voltage >17.0 +/- 1.0
VDC
Over temperature by internal thermostat, self resetting
Input reverse
polarity by circuit breaker |
| Cooling |
Through convection and the
baseplate |
| Indicators |
Two lights indicate Unit on,
High charge, Float charge, Undervoltage lockout, and Short circuit
protected |
| Dimensions |
17.8 x 6.9 x 3.6 inches
45 x
18 x 9 cm |
| Drawings |
See below |
| Weight |
8.2 kg (18 lbs) |
| Audible Noise |
None |
| Warranty |
2 years limited warranty for
parts and labor |

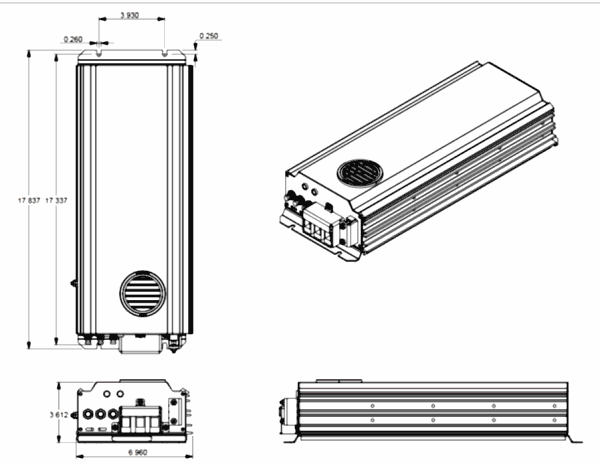

PSEC-749HS drawing:
PSEC-649HS drawing:
Heavy Duty, High Current Switchmode 12VDC/ 48VDC Converters.
Wide input voltage range suitable for 12 Volt, 14 Volt and 16 Volt
systems. |
