10 Watt DC Converter module with 24VDC input and ±15V bipolar output at half price AV10-24D15


10 watt DC/DC converter module

Click here for a larger view of the DC/DC converter

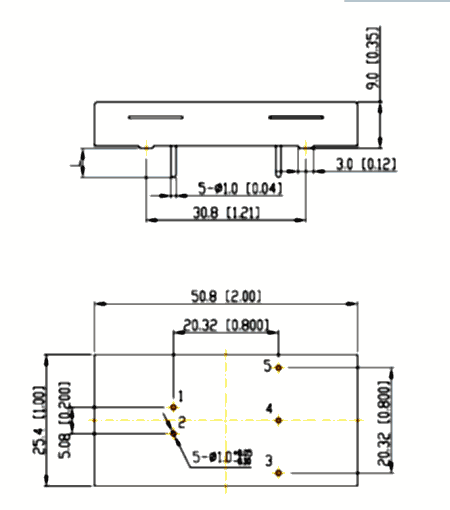

View from the top, or view of the circuit board
Pin Bipolar Output
1 + Input
2 - Input
3 + Output
4 Common
5 - Output
These printed circuit mount dc to dc converter bricks closely regulate the output voltage over a range of input voltages.

Isolated DC converter modules with 24V input and single ±15V output


AV10-24D15 ±15V output ±0.33 10W $24 Add to cart
Data Value
Input voltage 24V 18V to 36V
Output voltage ±15V ±0.33A 10 Watts
Setpoint accuracy ±1%
Voltage adjust none
Line regulation ±0.2%
Load regulation ±0.5%
Ripple and noise 100 mV p-p
Transient response 200 microsecond max for a 25% step
Control pin none
Temperature -25°C to 95°C operating -40°C to 105°C storage
Agency approval UL60950, CSA22.2-60950, TUV EN60950
Data Sheet Full data sheet here
Weight 48g, 1.7 oz
Efficiency ~78%
MTBF > 200,000 hours Bellcore TR332

Advantages:

OEM Battery Chargers Inexpensive Switchmode 24 volt to ±15V DC/DC Converter

OEM Battery Chargers High efficiency: approximately 78%.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Wide input voltage range.
