AC-DC Converters |
20A 12V
|
40A 12V
|
60A 12V
|
100A 12V
|
Part Number |
PWS310-110-12 PWS310-220-12 |
PWS610-110-12 PWS610-220-12 |
PWS1000-110-12 PWS1000-220-12 |
PWS1505-12 PWS1500-220-12 |
Input Voltage |
90-130VAC 45-65 Hz also 210-250VAC version |
90-130VAC 45-65 Hz also 180-260VAC version |
90-130VAC 45-65 Hz also 180-260VAC version |
105-250VAC 45-65 Hz also 180-260VAC autoranging |
Output Voltage |
13.6 VDC (12V available, specify when ordering) |
13.6 VDC (12V available, specify when ordering) |
13.6 VDC (12V available, specify when ordering) |
13.6 VDC (12V available, specify when ordering) |
User Adjustable output voltage? |
Yes |
Yes |
Yes |
Yes |
Max Output Current(s) |
25 Amps peak 10 minutes maximum |
45 Amps Peak 10 minutes maximum |
70 Amps Peak |
120 Amps Peak |
Max Output Power (Peak) |
340 Watts (25 Amps @ 13.6V) |
616 Watts (45 Amps @ 13.6V) |
952 Watts (70 Amps at 13.6V) |
1496 Watts (110A @ 13.6V) |
Continuous Amperage |
20A |
40A |
60A |
100A continuous |
Max Output Power (continuous) |
272 Watts (20 Amps @ 13.6V) |
544 Watts (40 Amps @ 13.6V) |
816 Watts (60 Amps @ 13.6V) |
1360 Watts (100 Amps @ 13.6V) |
Duty Cycle |
20 Amps for 24 hours per day |
40 Amps for 24 hours per day |
60 Amps for 24 hours per day |
100 Amps for 24 hours per day |
Output current limiting for use in battery charging? |
Yes |
Yes |
Yes |
Yes |
Operating Temperature Range |
-25°C to +40°C |
-25°C to +40°C |
-25°C to +40°C |
-25°C to +40°C |
Derating |
2.5% per °C from +40°C |
2.5% per °C from +40°C |
2.5% per °C from +40°C |
2.5% per °C from +40°C |
Efficiency at full power |
>80 % |
>80 % |
>80 % |
>85 % |
Line Regulation |
<±0.5% |
<±0.5% |
<±0.5% |
<±0.5% |
Load Regulation |
<±0.5% |
<±0.5% |
<±0.5% |
<±0.5% |
Switching frequency |
kHz |
kHz |
kHz |
kHz |
Output ripple noise |
<25 mV rms |
<50 mV rms |
<50 mV rms |
<50 mV rms |
Isolation |
>1500 volts isolation input/case, and input/output >500
volts case/output |
>1500 volts isolation input/case, and input/output >500
volts case/output |
>1500 volts isolation input/case, and input/output >500
volts case/output |
>1500 volts isolation input/case, and input/output >500
volts case/output |
Remote power on/off |
option |
option |
option |
No |
Input Circuit Breaker |
7A / 4A for 220VAC |
15A / 8A for 220VAC |
25A fuse / 15A for 220VAC |
25A Breaker |
Connections and cables |
Screw terminals for wire |
Screw terminals |
4 Screw Barrier Block Output Terminals |
Flying wire Leads |
Protection |
Audible & visual indicators for
output overload, low input voltage, low output voltage &
over-temperature |
Audible & visual indicators for
output overload, low input voltage, low output voltage &
over-temperature |
Audible & visual indicators for
output overload, low input voltage, low output voltage &
over-temperature |
Audible & visual indicators for
output overload, low input voltage, low output voltage &
over-temperature |
Dry contact relay on output failure |
Yes |
Yes |
Yes |
Yes |
Output Voltage Limit Crowbar |
32.0 ± 1.0V |
32.0 ± 1.0V |
32.0 ± 1.0V |
34.0 ± 1.0V |
Dimensions |
244 x 208 x 64 mm 9.6 x
8.2 x 3.5 inches) |
343 x 484 x 138 mm (13.5
x 19 x 3.5 inches) |
368 x 251 x 140 mm (14.5
x 9.9 x 5.5 inches) |
432 x 208 x 89 mm (17 x
8.2 x 3.5 inches) |

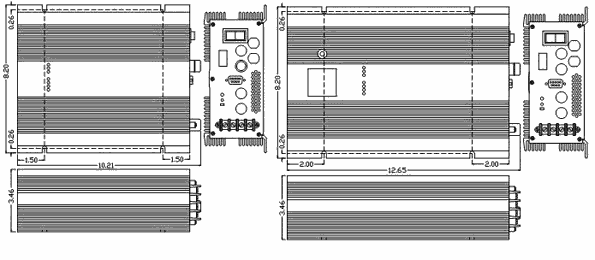

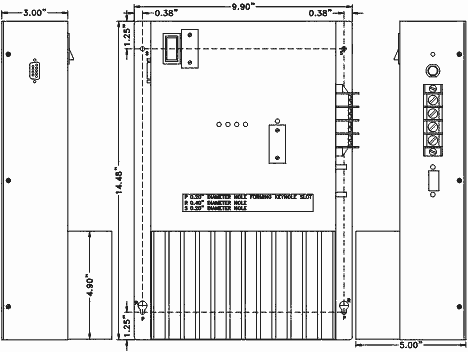

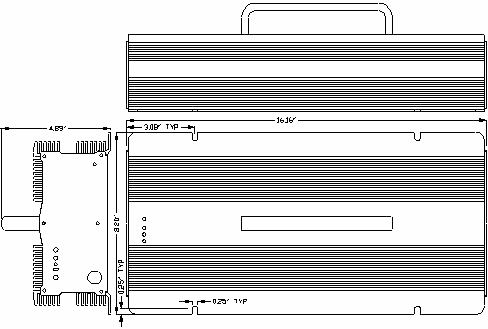

Drawings |
Drawing |
Drawing |
Drawing |
Drawing |
Weight |
7.5 lbs |
14 lbs |
14 lbs |
15 lbs |
Audible Noise |
None |
None |
None |
Fan whisper |
Cooling |
Convection, no fan |
Convection, no fan |
Convection, no fan |
Thermostatically controlled fan |
Warranty |
5 years |
5 years |
5 years |
5 years |
