24 VDC, 1000mA (500mA, 750 mA) Switchmode miniature wall mount Power Supply

24 volt, 12 watt low voltage switching power supply, 0.5 amps maximum 24 volt 750 mA wall-wart power supply

Wall plug Universal AC regulated switchmode 24 volt power supply, 1000mA maximum

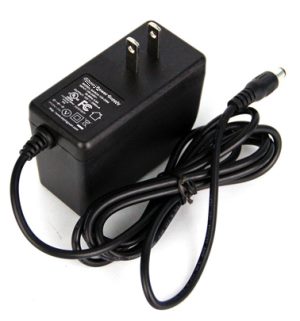

This is a compact, high quality, switchmode regulated power supply with stable output, up to 24 watts continuous. It has a fixed AC plug as shown.

In Stock, order online or call to order for quantities greater than 100 pieces

Quantity	1-10	11-50	51-100	101+
Price PST-AC2410W formerly PST-AC2405W	$13.50	$11.90	$10.30	Call
PST-WX12 Optional 12 piece Output adapter barrel plug kit	$7.00
Polarity reversing adapter for center-negative products	$3.50
SDY-C53F (ZHJX002) To adapt the barrel connector to screw terminals	$2.50 each

.Slimline wall-mount format for placing side-by-side mounting in a wall socket or power strip.

GENERAL SPECIFICATIONS
Safety Compliance:	UL, cUL

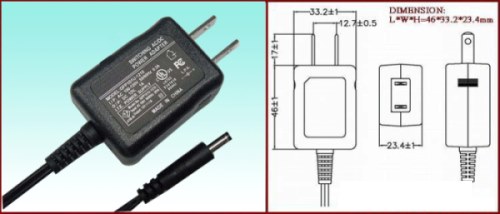

Size	74mm x 35 mm x 52 mm, (2.9 x 1.4 x 2 inches)
Weight:	112 grams, 4 ounces
Cooling:	Free air convection
Construction:	Impact resistant thermo-plastic enclosure case
INPUT SPECIFICATION
Input Voltage:	Input Voltage: rating 100-240VAC
Input Connector:	WM1 (U.S.2-blade) as shown
Input Frequency:	47-63Hz. 50Hz/60Hz nominal
EMI:	Meet EN 55022 or FCC Class B
Efficiency	CEC-V/ERP/MEPS
No-load Standby Power	<0.3W
Agency Approvals	cUL, FCC
MTBF	50,000 hours per MIL-HDBK-217
OUTPUT SPECIFICATION
Output Voltage:	24.0 Volts D.C.
Output Current:	0-1.0 Amps fully regulated
Output Wattage:	0-24 Watts typical
Line Regulation:	0.1% typical
Load Regulation:	±2-3% typical
Noise & Ripple:	50mV peak to peak
Overload Protection (OLP)	Fully protected against output overload or short circuit. OLP is set at about 120-150% of the rated continous output.
Output Connector:	5.5 mm OD x 2.1 mm ID
Output Polarity	Center Positive
Dimensions	2.8 x 1.7 x 1.4 inches (71 x 43 x 35 mm)
Output Cord	6 foot, 2 conductor 22 AWG wire
Working Temperature	0°C to +40°C
Storage Temperature	-20°C to +60°C

NOTES: (1) All measurements are at nominal input, full load, and +25°C unless otherwise specified. (2) Load regulation is measured at 230Vac or 120Vac in percentage to indicate the change in output voltage as the load is varied from half load to full load (±%). (3) The exact obtainable load regulation depends upon the output cord selected and load current.

A 5.5 x 2.1 mm barrel connector is supplied

Optional DC Plugs slip over the 5.5 x 2.1 mm connector if desired.

2.35 OD x 0.7 ID Barrel
3.0 OD x 1.1 ID Barrel
3.5 OD x 1.35 ID Barrel
4.0 OD x 1.7 ID Barrel
4.75 mm OD x 1.75 mm ID Barrel EIAJ-03
5.0 mm OD x 3.5 mm ID with center pin
5.5 mm OD x 1.5 mm ID type 2 Barrel
5.5 mm OD x 2.5 mm ID Barrel
6.3 OD x 3.0 ID center pin Barrel
6.0 OD x 4.4 ID center pin Barrel
7.4 mm OD x 5.0 center pin ID Barrel
7.9 OD x 5.6 ID center pin Barrel

Advantages:

Universal input switchmode power supply with fixed 24 volt output voltage.

High efficiency miniature power supply for networking and telecom use.

Excellent line and load regulation.
