36 Volt Li-Fe-PO4 Packs |
Model |
ITEM |
DESCRIPTION |
Q'TY (PCS) |
Optional Size, depending on
layout
|
Weight |
UNIT PRICE |
Part number and
Total price for pack and
charger |
Lead time |
5Ah/36V LiFePO4 battery
pack |
Lithium iron phosphate
batteries |
12
cells of 5Ah/3.2V in series |
12 |
276 x 51 x 73 mm
3.6 x 2 x |
2.4 k g 5.3 lbs |
$340 |
LiFP-36V5AH $495 Complete with battery management system and charger |
20-25 days |
Battery Management System
(PCB) |
Maximum discharging current: 15A |
1 |
BMBLIFP-12S15A |
|
$90 |
Continuous discharging current: 15A |
Charger |
Input: 110VAC |
|
|
|
$65 |
Output: 2A, 45.6VDC |
|
|
|
|
|
|
|
|
|

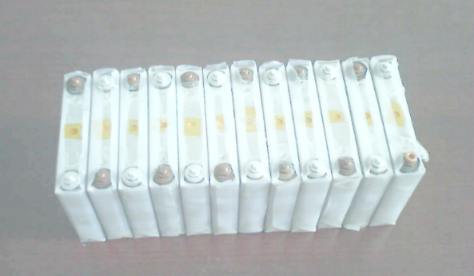

10Ah/36V LiFePO4 battery
pack |
Lithium iron phosphate
batteries |
12
pcs of 10Ah/3.2V in series |
12 |
320x100x105 mm
12.6 x 3.9 x 4.1
inches |
5.5 kg, 12 lbs |
$572.00 |
LiFP-36V10AH $726 Complete with battery management system and charger |
25-30 days delivery |
Battery Management System
(PCB) |
Maximum discharging current: 30A |
1 |
BMBLIFP-12S20A
|
|
$90.00 |
Continuous discharging current: 20A |
Charger |
Input: 110VAC (230VAC available on special order)
Output: 2A, 45.6VDC |
1 |
|
|
$65.00 |
|
|
|
|
|
|
|
|
|
20Ah/36V LiFePO4 battery
pack |
Lithium iron phosphate
batteries |
12
pcs of 20Ah/3.2V in series |
12 |
360 x 100 x 60mm
14.1 x 4 x 2.4 inches
|
8.4kg
18.5 lbs |
$1100 |
LiFP-36V20AH $1255 Complete with battery management system and
charger |
20-25 days |
Battery Management System
(PCB) |
Maximum discharging current: 30A |
1 |
BMBLIFP-12S20A
|
|
$90 |
Continuous discharging current: 20A |
Charger |
Input: 110VAC (230VAC available on special order)
Output: 2A, 45.6VDC |
1 |
|
|
$65 |
|
|
|
|
|
|
|
|
|
55Ah/36V LiFePO4 battery
pack |
Lithium iron phosphate
batteries |
12 pcs of 55Ah/3.2V in series |
12 |
540 x 120 x 190mm
21.3 x 4.7 x 7.5 inches
|
25.2kg
56 lbs |
$3083 |
LiFP-36V55AH $3328 Complete with battery management system and
charger |
35-40 days |
Battery Management System
(PCB) |
Maximum discharging current: 30A |
1 |
BMBLIFP-12S20A
|
|
$90 |
Continuous discharging current: 20A |
Charger |
Input: 110VAC (230VAC available on special order)
Output: 2A, 45.6VDC (25 hour charge rate) |
1 |
|
|
$65 |
|
|
|
|
|
|
|
|
|
110Ah/36V LiFePO4 battery
pack |
Lithium iron phosphate
batteries |
12 pcs of 100Ah/3.2V in series |
12 |
684 x 240 x 190mm
27 x 9.4 x 7.5 inches |
50.4kg
111 lbs |
$6166 |
LiFP-36V110AH $6321 Complete with battery management system and charger |
35-40 days |
Battery Management System
(PCB) |
Maximum discharging current: 30A
Continuous discharging current: 20A |
1 |
BMBLIFP-12S20A |
|
$90 |
Charger |
Input: 110VAC (230VAC available on special order)
Output: 3A, 45.6VDC (40 hour charge rate) |
1 |
|
|
$65 |
|
|
|
|
|
|
|
|
|
Other combinations of the
battery management systems listed here and the cells listed on the
power lithium battery cell page
are also available upon request.
|
