AC/DC and AC/AC Transformer Adapters 0.3 to1.5 Watt

more power supplies from PowerStream
More Power Supplies from PowerStream

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry!



Note: click here for all AC/AC wallmount power supplies in stock
Dimensions of 1 Watt Wall Bumps

AC /DC and AC/AC Adpaters 0.3-1.5 Watt nominal, Wall Mount, JOD-28U style



These transformer based power supplies are only available in quantities of 1000+ pieces per shipment. Call or write for a quote.
Engineering Guid to Wall Mount Power Supplies How to Design with Wall Mount Power Supplies
DC Output, for AC output see table below
Model No. Rated Output Voltage Rated Output Current Rated Output
JOD-28U-01 9VDC 100mA 0.9VA
JOD-28U-02 9VDC 150mA 1.35VA
JOD-28U-03 9VDC 200mA 1.8VA
JOD-28U-04 9VDC 210mA 1.89VA
JOD-28U-05 9VDC 50mA 0.45VA
JOD-28U-06 3VDC 100mA 0.3VA
JOD-28U-07 3VDC 150mA 0.45VA
JOD-28U-08 3VDC 200mA 0.6VA
JOD-28U-09 3VDC 250mA 0.75VA
JOD-28U-10 3VDC 300mA 0.9VA
JOD-28U-11 3VDC 350mA 1.05VA
JOD-28U-12 3VDC 400mA 1.2VA
JOD-28U-13 4.5VDC 100mA 0.45VA
JOD-28U-14 4.5VDC 150mA 0.68VA
JOD-28U-15 4.5VDC 200mA 0.9VA
JOD-28U-16 4.5VDC 250mA 1.13VA
JOD-28U-17 4.5VDC 300mA 1.35VA
JOD-28U-18 4.5VDC 350mA 1.58VA
JOD-28U-19 5VDC 100mA 0.5VA
JOD-28U-20 5VDC 150mA 0.75VA
JOD-28U-21 5VDC 200mA 1.0VA
JOD-28U-22 5VDC 250mA 1.25VA
JOD-28U-23 6VDC 50mA 0.3VA
JOD-28U-24 6VDC 100mA 0.6VA
JOD-28U-25 6VDC 150mA 0.9VA
JOD-28U-26 6VDC 200mA 1.2VA
JOD-28U-27 6VDC 250mA 1.5VA
JOD-28U-28 7.5VDC 50mA 0.38VA
JOD-28U-29 7.5VDC 100mA 0.75VA
JOD-28U-30 7.5VDC 150mA 1.13VA
JOD-28U-31 7.5VDC 200mA 1.5VA
JOD-28U-32 10VDC 50mA 0.5VA
JOD-28U-33 10VDC 100mA 1.0VA
JOD-28U-34 10VDC 150mA 1.5VA
JOD-28U-35 12VDC 50mA 0.6VA
JOD-28U-36 12VDC 100mA 1.2VA
JOD-28U-37 12VDC 150mA 1.8VA
JOD-28U-38 13.5VDC 50mA 0.68VA
JOD-28U-39 13.5VDC 100mA 1.35VA
JOD-28U-40 12VDC 120mA 1.44VA
AC Output, for DC output see table above
Model No. Rated Output Voltage Rated Output Current Rated Output
JOD-28U-01A 9VAC 200mA 1.8VA
JOD-28U-02A 9VAC 100mA 0.9VA
JOD-28U-03A 9VAC 150mA 1.35VA
JOD-28U-04A 9VAC 250mA 2.25VA
JOD-28U-05A 3VAC 100mA 0.3VA
JOD-28U-06A 3VAC 150mA 0.45VA
JOD-28U-07A 3VAC 200mA 0.6VA
JOD-28U-08A 3VAC 300mA 0.9VA
JOD-28U-09A 3VAC 400mA 1.2VA
JOD-28U-10A 3VAC 500mA 1.5VA
JOD-28U-11A 3VAC 600mA 1.8VA
JOD-28U-12A 4.5VAC 100mA 0.45VA
JOD-28U-13A 4.5VAC 150mA 0.68VA
JOD-28U-14A 4.5VAC 200mA 0.9VA
JOD-28U-15A 4.5VAC 250mA 1.13VA
JOD-28U-16A 4.5VAC 300mA 1.35VA
JOD-28U-17A 4.5VAC 350mA 1.58VA
JOD-28U-18A 4.5VAC 400mA 1.80VA
JOD-28U-19A 4.5VAC 500mA 2.25VA
JOD-28U-20A 5VAC 100mA 0.5VA
JOD-28U-21A 5VAC 150mA 0.75VA
JOD-28U-22A 5VAC 200mA 1.0VA
JOD-28U-23A 5VAC 250mA 1.25VA
JOD-28U-24A 5VAC 300mA 1.5VA
JOD-28U-25A 5VAC 350mA 1.75VA
JOD-28U-26A 5VAC 400mA 2.0VA
JOD-28U-27A 5VAC 450mA 2.25VA
JOD-28U-28A 6VAC 100mA 0.6VA
JOD-28U-29A 6VAC 150mA 0.9VA
JOD-28U-30A 6VAC 200mA 1.2VA
JOD-28U-31A 6VAC 250mA 1.5VA
JOD-28U-32A 6VAC 300mA 1.8VA
JOD-28U-33A 6VAC 350mA 2.1VA
JOD-28U-34A 6VAC 400mA 2.4VA
JOD-28U-35A 7.5VAC 100mA 0.75VA
JOD-28U-36A 7.5VAC 150mA 1.13VA
JOD-28U-37A 7.5VAC 200mA 1.5VA
JOD-28U-38A 7.5VAC 250mA 1.88VA
JOD-28U-39A 7.5VAC 300mA 2.25VA
JOD-28U-40A 12VAC 100mA 1.2VA
JOD-28U-41A 12VAC 150mA 1.8VA
JOD-28U-42A 12VAC 200mA 2.4VA

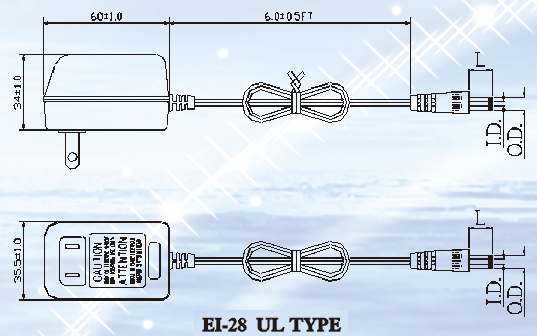

Dimensions of 1 Watt Wall Bumps
Connector Types
I. D O. D Long Straight Right Angle Type
No.
1 2.1 5.5 V V Barrel
2 2.5 5.5 V V Barrel
3   3.5   V Barrel
4 2.1 5.0 V V Barrel
5 2.5 5.0 V V Barrel
6 1.3 3.5 V V Barrel
7 1.0 3.5 V V Barrel
8 1.0 3.8 V V Barrel
9 0.7 2.35 9.5 V V New EIAJ Female
10 1.7 4.0 9.5 V V New EIAJ Female
11 1.7 4.75 9.5 V V New EIAJ Female
12 1.0 5.5 9.5 V V New EIAJ Female
13 1.4 6.5 9.5 V V New EIAJ Female

This page has wall mount adapters for the following voltages:
3 VAC 1 Amp 4.5 VAC 100 mA 4.5 VAC 200 mA 4.5 VAC 300 mA 4.5 VAC 400 mA 4.5 VAC 500 mA 9 VAC 5 VAC 6 VAC 7.5 VAC
12 VAC 6 VDC 7.5 VDC 9 VDC
12 VDC 3 VDC 4.5 VDC 5 VDC 7 VDC 13.5 VDC
Volts AC Volts DC
