Dell W1451 65 watt AC/Air/Auto Power Supply


82 watt switchmode power supply with user adjustable output voltage
Universal input AC 19.5 Volt, 3.34 Amp DC power supply, 65 Watts average, 120 watts peak.


For more power supply products from PowerStream click here:More DC/DC Converters

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry!

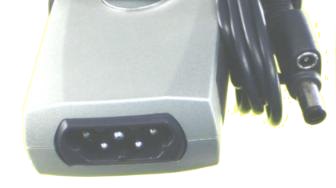

.This is a small switchmode power supply, 19.5 volts output watts peak. Originally sold with Dell laptops. It comes with a nice nylon fabric travel case, airplane adapter, cigarette lighter car adapter, and US AC cord.

Prices
Qty 1-10
W1451
Price
Not available at this time, sorry

This power adapter is used with the following notebook computers;
  • Latitude X300.
  • Latitude D400
  • Latitude D500
  • Latitude D505
  • Latitude D600
  • Latitude D800
  • Inspiron 300m
  • Inspiron 500m
  • Inspiron 510M
  • Inspiron 600m
  • Inspiron 8500
  • Inspiron 8600
  • Precision M60

This adapter can be used in the airline in-seat power systems and it is provided with the special connection cable. The air in-seat power systems are limited to an output of 75 Watts, these are 65 watt power supplies.
Part Number W1451
Parameter
Output 19.5 Volts
Output Power 65 Watts, 3.34 Amps
Input Voltage 100-240 VAC, 47-63 Hz
Input Frequency 50/60 Hz
Temperature 0° to 40° C Operating, overtemperature cutout is reset by removing and reapplying AC power.
Size 120mm x 70mm x 50mm (4.75 x 2.75 x 2 inches)


Comes with these two cords, which work for AC, Auto, and Airplane seats. For international use you need a country adapter such as the one at https://www.powerstream.com/plug-adapter.htm Never try to use another cord for the W1451 than those supplied with it, it won't work, and it may cause damage to the power supply.


Qty 1-10
W1451
Price
No Longer Available, Sorry


Advantages:

OEM Battery Chargers Universal input switchmode dc power supply with user adjustable output voltage.

OEM Battery Chargers High efficiency PC power supply for telecom use..

OEM Power Supplies Excellent line and load regulation.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Special feature for OEMs and hobbiests. A a separate compartment opens, having screw terminals for attaching wires or cables to the output.
