In stock 50 Watt Fully Isolated Vicor DC/DC 12 Volt to 12 volt Converter half bricks at 1/2 price

12V to 12V converter half brick 12Volt  4 Amp 50W DC-DC converter with 10V to 20V input
For the same product mounted on a circuit board with screw terminals

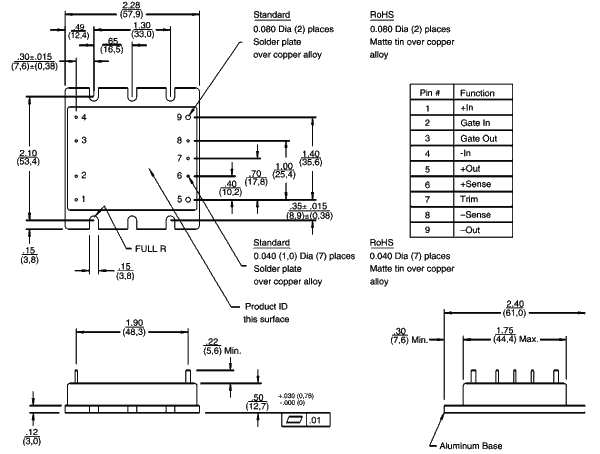

diagram of the VI-J01-CY layout and pinout
_________________________________________________________________________

This is a fully isolated 12V to 12V DC/DC converter module, or "half-brick." It has 3000 volts isolation from input to output, has a standard footprint, and a wide voltage input of 10-20vDC. The 12 volts output is at 4166 mA, giving 50 watts.


The short circuit protection is done by an automatic recovery "hiccough mode," meaning that when it detects an overload it tries to come on, then if the fault is still there it will shut off. This happens continually until the fault is corrected.

This is perfect for regulating 12 volts from battery or automobile voltage sources.
These are high quality, brand name USA converters, NAFTA eligible .
Quantity 1-10 11+
12V to 12V DC/DC regulator, 50 Watts
We no longer carry the Vicor VI-J01-CY version, but this is an
pin-for-pin identical replacement.
$89.20
$81
VI-J01-1Z 12V to 12V DC/DC regulator, 25 Watts $75.0


Isolated DC converter half-brick circuit board mount modules.


Summary of features. For full data click on the data sheet link.
Characteristic Vicor UL (RU) CE, CSA, TUV listed
Nominal Input Input 12V nominal 12 V 10V-20V
Input 10-20V
Output 12V 4.167A 50W
Setpoint Accuracy 0.5% typical, 1% maximum
Line and Load Regulation 0.05% typical, 0.2% maximum using sense lines
Form Factor 51mm half-brick
Isolation 3000V input-output
Remote voltage sensing Yes
Parallel operation Can be paralleled to obtain 100W, 150W, 200W, etc. See PDF data sheet
Enable/Disable Connecting pin 2 (gate) to pin 4 (negative input) turns the output OFF
Efficiency up to 90% efficient
Temperature Range -25°C to + 100°C
Trim Range The trim range is ±10% 10.8V - 13.2V   Consult this manual for trim instructions
Weight 89 grams 3.1 oz
Size 57.9 x 61.0 x 12.7 mm 2.28" x 2.4" x 0.5"
Country of Origin USA, NAFTA eligible



On-OFF Pin: Connecting pin 2 to pin 4 turns the output off.

Advantages:

OEM Battery Chargers Inexpensive High Current Switchmode DC/DC Converter.

OEM Battery Chargers High efficiency approximately 80%.

OEM Power Supplies Multiple outputs available, just ask.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Extra Wide input voltage range.
