UTC2412-RVEB trailer controller and voltage converter, 24V NATO vehicle, 12V RV trailer

trailer controller, 12V 24V 12 prong NATO male MS 75021-1
24V NATO MS 75021-1
7 prong rv connector
7 Prong RV connector 12V
12 volt and 24 volt trailer converters, military, European, USA
For more 12V/24V and 24V/12V trailer interface controllers click here
  Input Connector Output Connector
Model Price
UTC2412-RVEB Trailer Electrical Interface 24V vehicles, 12V trailer $869

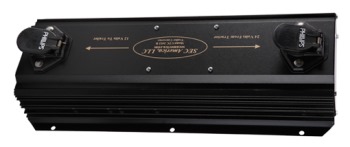

UTC 2412-RVEB is an electrical interface between a NATO 24 Volt towing vehicle and a 12 Volt North American civilian RV trailer, specifically for use with electric trailer brakes. UTC 2412-RVEB provides 6 independent circuits capable of supplying a total power of 800 Watts at 12 Volts through a 7 position blade connector. The same connector pins conventionally designated for their respective functions on both the truck and trailer are used. The compatible connectivity of the interface translates into effortless installation. The brake signal is fed directly from the truck’s NATO connector to the corresponding 7-way output connector feeding the trailer. UTC 2412-RVEB is compact and lightweight at only 15 pounds. It has a flat profile making mounting practical to either towing vehicle or trailer.

Trailer Voltage Converter Interface Design Features

  • Wide Range Input Voltage Ranges, 21-30V
  • High Efficiency Design
  • Hi Ingress Rating, IP676
  • Low Voltage cutout
  • High Voltage cutout
  • Electronically Current Limited
  • Thermally Protected
  • Low No-Load Power Consumption
  • Aluminum Anodized Housing
  • 6-point mounting
  • NATO MS 75021-1 input connection
  • RV Trailer output connection

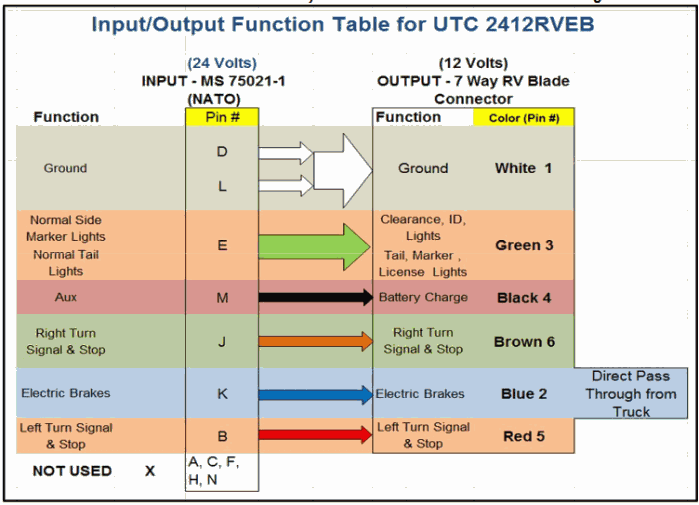

input/output table for UTC2412-RVEB trailer controller
INPUT VOLTAGE RANGE 21-30 VDC or
INPUT CURRENT 10A maximum per circuit for 24V input
OUTPUT VOLTAGE 13.6 ± 0.3 V per circuit
OUTPUT CURRENT  15A per line (Brown Black, Red, Blue
10A per line (Yellow, Green)
OUTPUT REGULATION 0.2V over entire input voltage and load current range
OPERATING TEMPERATURE

STORAGE TEMPERATURE
-40C to +60C
-60C to +125C
OVERLOAD PROTECTION Electronic
EFFICIENCY 92% Typical
CONSTRUCTION BLACK ANODIZED ALUMINUM
WEIGHT 14 lbs./ 6.5 kg. total
(cable included)

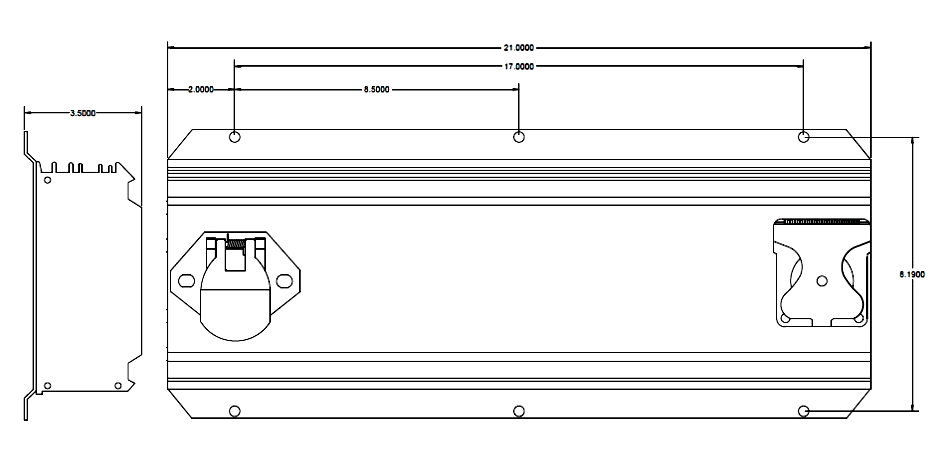

drawing of the UDC2412-BD trailer interface controller
