UTC2412-8 trailer controller and voltage converter, 24V vehicle, 12V trailer

trailer controller, 12V 24V 12 prong NATO male MS 75021-1
24V NATO MS 75021-1
7-pin-sae-560 trailer connector
7 Pin SAE 560 12V
12 volt and 24 volt trailer converters, military, European, USA
For more 12V/24V and 24V/12V trailer interface controllers click here
  Input Connector Output Connector
Model Price
UTC2412-8 Trailer Electrical Interface 24V vehicles, 12V trailer $840
The UTC 2412-8 provides an electrical interface between a 24 Volt NATO towing vehicle and a 12 Volt North American trailer. It provides 6 independent circuits capable of supplying a total power of 800 Watts at 12 Volts. This power application to the trailer ABS system and its various lighting circuits is achieved through the same trailer connector pins conventionally designated for their respective functions. The interface’s compatible connectivity translates into no requirement for hard wiring and effortless installation. UTC 2412-8 is compact and lightweight at only 15 pounds. It has a flat profile making mounting practical to either the towing vehicle chassis or the front face of the trailer.

Trailer Voltage Converter Interface Design Features

  • Wide Range Input Voltage Ranges, 21-30V
  • High Efficiency Design
  • Hi Ingress Rating, IP676
  • Low Voltage cutout
  • High Voltage cutout
  • Electronically Current Limited
  • Thermally Protected
  • Low No-Load Power Consumption
  • Aluminum Anodized Housing
  • 6-point mounting
  • NATO MS 75021-1 Input Connection
  • SAE 560 Output Connection

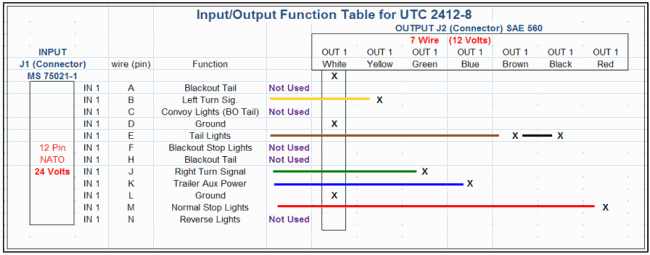

input/output table for UTC2412-8 trailer controller
INPUT VOLTAGE RANGE 21-30 VDC or
INPUT CURRENT 10A maximum per circuit for 24V input
OUTPUT VOLTAGE 13.6 ± 0.3 V per circuit
OUTPUT CURRENT  15A per line (Brown Black, Red, Blue
10A per line (Yellow, Green)
OUTPUT REGULATION 0.2V over entire input voltage and load current range
OPERATING TEMPERATURE

STORAGE TEMPERATURE
-40C to +60C
-60C to +125C
OVERLOAD PROTECTION Electronic
EFFICIENCY 92% Typical
CONSTRUCTION BLACK ANODIZED ALUMINUM
WEIGHT 14 lbs./ 6.5 kg. total
(cable included)

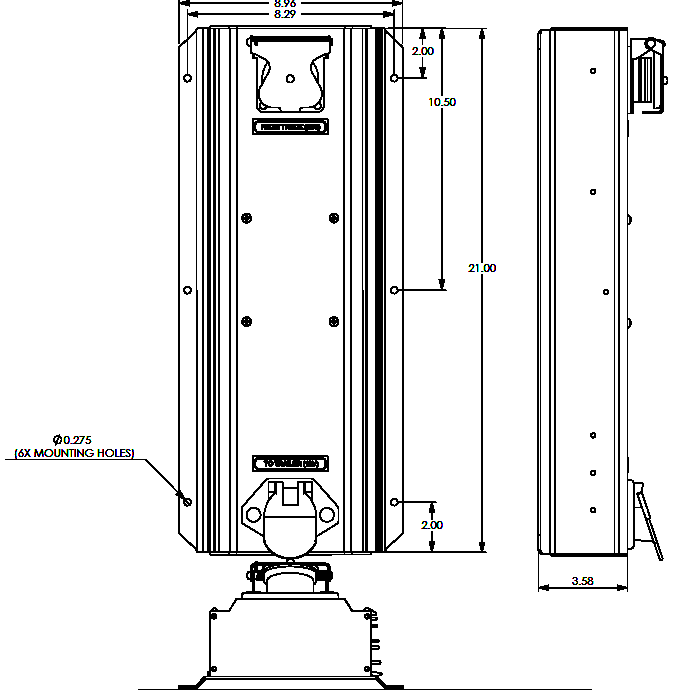

drawing of the UDC2412-BD trailer interface controller
