UTC2412-7H trailer controller, 24V or 12V vehicle, 12V trailer

trailer controller, 12V 24V  7-pin-sae-560 trailer connector
7 Pin SAE 560 12V
12 prong NATO male MS 75021-1
6 foot cable with ring terminals
Output 4 foot cable with ring terminals for a 12V trailer
12 volt and 24 volt trailer converters, military, European, USA
For more 12V/24V and 24V/12V trailer interface controllers click here
  Input Connectors Output Connector
Model Price
UTC2412-7H Trailer Electrical Interface 24V vehicles, 12V trailer $849
The UTC2412-7H is a trailer controller and electrical converter designed to be part of a trailer built to North American commercial 7 pin standards. The UTC 2412-7H enables its host trailer to be easily coupled to either a NATO 24V or North American 12V vehicle. The UTC 2412-7H has six independent circuits capable of supplying a total power of 800 Watts at 12 Volts. This power application to the trailer ABS system and its various lighting circuits is achieved through hard wiring. UTC 2412-7H is compact and lightweight at only 15 pounds. UTC 2412-7H has a flat profile making mounting practical to the front face of the trailer.

Trailer Voltage Converter Interface Design Features

  • Wide Range Input Voltage Ranges, 21-30V or 10.5-17V
  • High Efficiency Design
  • Hi Ingress Rating, IP676
  • Low Voltage cutout
  • High Voltage cutout
  • Electronically Current Limited
  • Thermally Protected
  • Low No-Load Power Consumption
  • Aluminum Anodized Housing
  • 6-point mounting
  • SAE 560 Input Connection
  • SAE 560 Output Connection

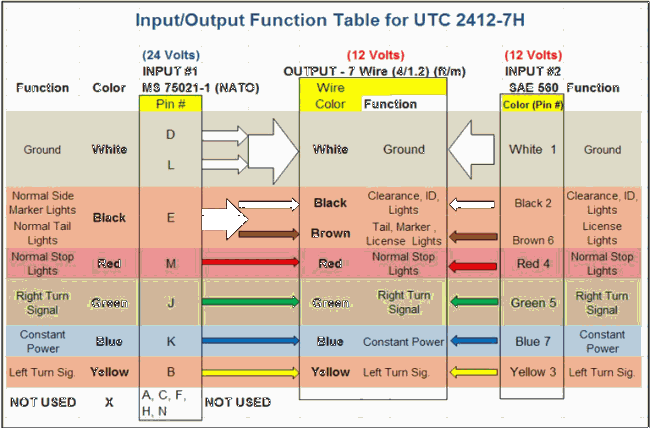

input/output table for UTC2412-7H trailer controller
INPUT VOLTAGE RANGE 21-30 VDC or
10.5-17 VDC, depending on which connector is used
INPUT CURRENT 10A maximum per circuit for 24V input
20A maximum per circuit for 12V input
OUTPUT VOLTAGE 13.6 ± 0.3 V per circuit
OUTPUT CURRENT  15A per line (Brown Black, Red, Blue
10A per line (Yellow, Green)
OUTPUT REGULATION 0.2V over entire input voltage and load current range
OPERATING TEMPERATURE

STORAGE TEMPERATURE
-40C to +60C
-60C to +125C
OVERLOAD PROTECTION Electronic
EFFICIENCY 92% Typical
CONSTRUCTION BLACK ANODIZED ALUMINUM
WEIGHT 14 lbs./ 6.5 kg. total
(cable included)

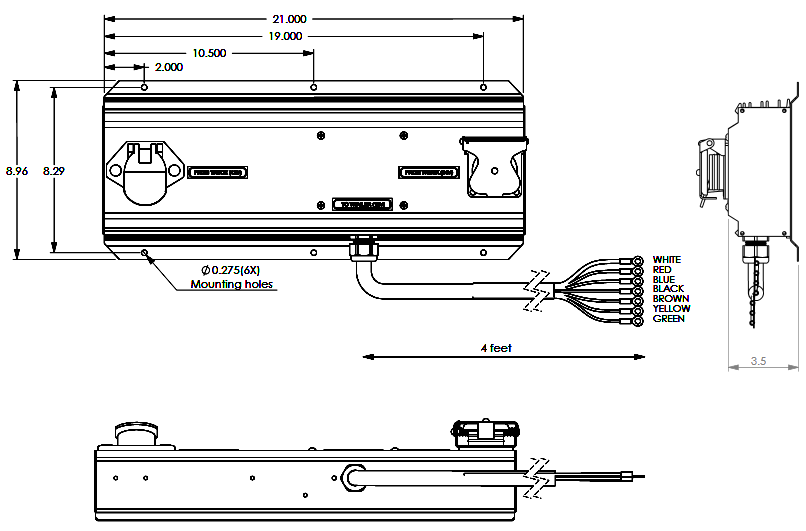

drawing of the UDC2412-BD trailer interface controller
