UTC2412B trailer controller, 24V vehicle, 12V trailer


trailer controller, 12V 24V  7-pin-sae-560 trailer connector
7 Pin SAE 560 24V
12 prong NATO male MS 75021-1
12 Pin NATO connector
7 prong JAE 560 plug and cable
7 Pin JAE plug on cable
12 volt and 24 volt trailer converters, military, European, USA
  Input Connector Output Connector  For more 12V/24V and 24V/12V trailer interface controllers click here
Model Price
UTC2412-7B Trailer Electrical Interface with two input connector styles $1110

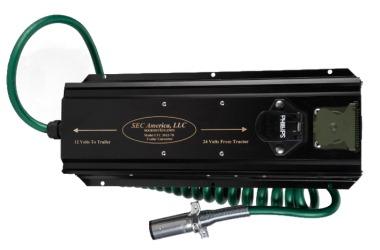

The UTC2412-7B is an electrical conversion controller interface between either a NATO or a commercial European towing vehicle and a 12 Volt North American trailer. The UTC2412-7B uses six independent circuits capable of supplying up to 800 Watts at 12 Volts. This power application to the trailer ABS system and its various lighting circuits is achieved through the same trailer connector pins used in your equipment. These controller interface connectors eliminate the need to change your hard wiring and makes installation quick. The UTC 2412-7B is low-profile and weatherproof, which makes it practical to mount on either the towing vehicle chassis or the front face of the trailer.

Trailer Voltage Converter Interface Design Features

  • Wide Range Input Voltage 21V-30V, withstands up to 36V
  • High Efficiency Design
  • Hi Ingress Rating, IP 676
  • Low Voltage cutout
  • High Voltage cutout
  • Electronically Current Limited
  • Thermally Protected
  • Low No Load Power Consumption
  • All Aluminum Anodized Housing
  • 6 point mounting
  • Optional SAE 560 or NATO MS 75021-1 Input Connection
  • Output via 12 foot cable
input/output table for UTC2412-7B trailer controller
INPUT VOLTAGE RANGE 21-30 VDC (nominal)
Will withstand up to 36V
INPUT CURRENT 10A maximum. per Circuit
OUTPUT VOLTAGE 13.6 ± 0.3 V per circuit
OUTPUT CURRENT  15A per line (BRN, BLK, RED, BLUE)
10A per line (YEL, GRN)
OUTPUT REGULATION 0.2V over entire input voltage and load current range
OPERATING TEMPERATURE

STORAGE TEMPERATURE
-40C to +60C
-60C to +125C
OVERLOAD PROTECTION Electronic
EFFICIENCY 92% Typical
CONSTRUCTION BLACK ANODIZED ALUMINUM
WEIGHT 25 lbs./ 11.5 kg. total
(cable included)

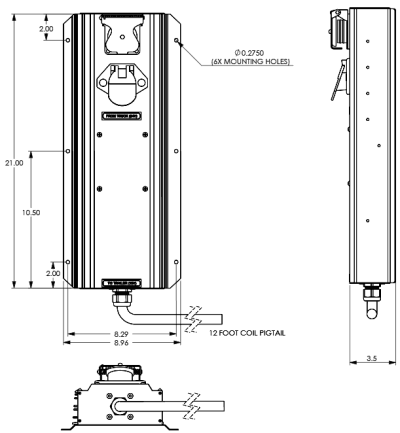

drawing of the UDC2412-7B trailer interface controller

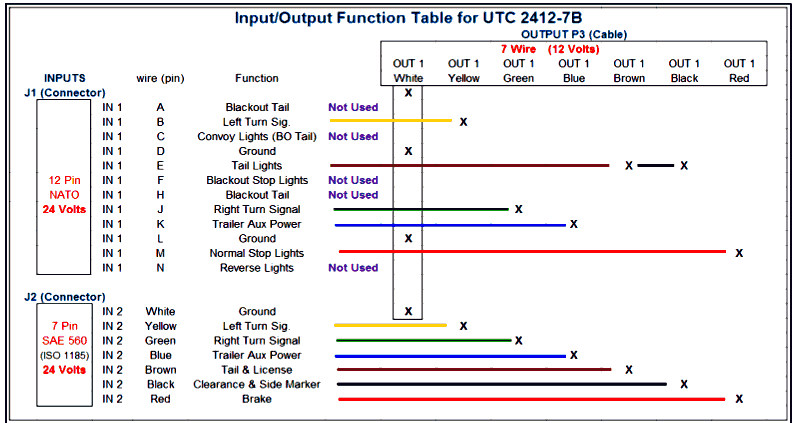

Input-Output function table (for clarity see the colored graphic above)













OUT 1

OUT 1

OUT 1

OUT 1

OUT 1

OUT 1

OUT 1



INPUTS



wire (pin)

Function



White

Yellow

Green

Blue

Brown

Black

Red



J1 (Connect

or)







X

















IN 1

A

Blackout Tail

Not Used



















IN 1

B

Left Turn Signal





X















IN 1

C

Convoy Lights (BO Tail)

Not Used



















IN 1

D

Ground



X

















IN 1

E

Tail Lights



















12 Pin

IN 1

F

Blackout Stop Lights

Not Used

















NATO

IN 1

H

Blackout Tail

Not Used

















24 Volts

IN 1

J

Right Turn Signal







X













IN 1

K

Trailer Auxiliary Power









X











IN 1

L

Ground



X

















IN 1

M

Normal Stop Lights















X





IN 1

N

Reverse Lights

Not Used

















J2 (Connect

or)

























IN 2

White

Ground



X















7 Pin

IN 2

Yellow

Left Turn Signal





X













SAE 560

IN 2

Green

Right Turn Signal







X











(160 1185)

IN 2

Blue

Trailer Auxiliary Power









X









24 Volts

IN 2

Brown

Tail & License











X









IN 2

Black

Clearance & Side Marker













X







IN 2

Red

Brake















X
