In stock 20 Watt Fully Isolated DC/DC 12 Volt Converter bricks at 1/2 price

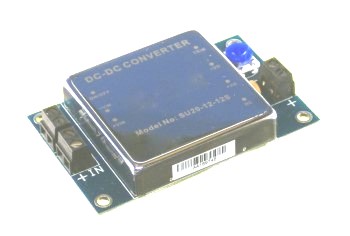

12 to 12 volt converter mounted on the circuit boad
Complete product with circuit board and wire terminals Bare module ready for mounting on a circuit board is also available
_________________________________________________________________________

This is a fully isolated 12V to 12V DC/DC converter module, or "brick." It has 1600 volts isolation from input to output, has a standard footprint, and a wide voltage input of 9-18VDC. The 12 volts output is at 1670 mA, giving 20 watts. It has automatic recovery from power overload protection, which kicks in at about 24 watts.


The short circuit protection is done by an automatic recovery "hiccough mode," meaning that when it detects an overload it tries to come on, then if the fault is still there it will shut off. This happens continually until the fault is corrected.

This is perfect for regulating 12 volts from battery or automobile voltage sources. We can also supply the circuit board to mount these to, the Gerber files are linked below.

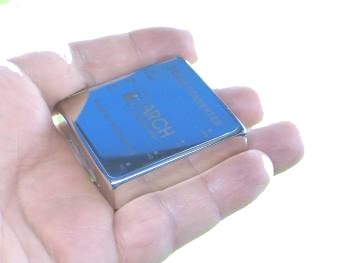

These are high quality, brand name Taiwanese converters in a polished nickel plated copper case. Shielding is on all 6 sides.
Quantity 1-50
PST-SU20-12-12S-complete

Consists of the PST-SU20-12-12S mounted on the
PST-SU20 circuit board with added parts to make a complete module.
$72.00
Price PST-SU20-12-12S

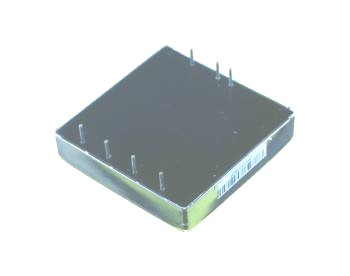

This is only the brick module.
$59.00
PST-SU20-board
This is only the circuit board to mount the DC converter on (see below)
$9.50
Isolated DC converter modules.
Part Number Input Output Max Current Max Power Form Factor
PST-SU-12-12 9-18 V 12 V 1.670 A 20 Watts 51 mm PDF Data Sheet

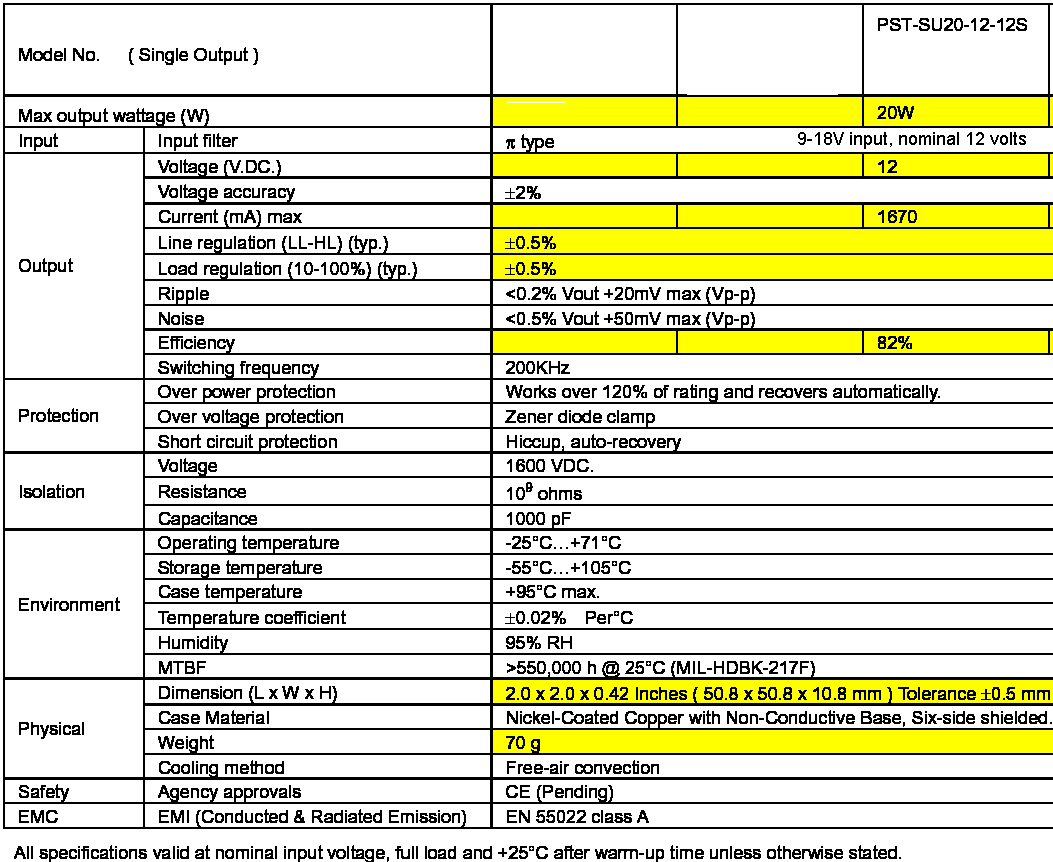

table showing specifications fhe SU20-1212 The trim range is ±10%

On-OFF Pin: Grounding this pin turns the output off.

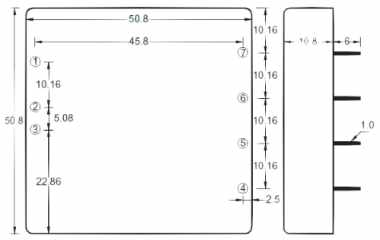

Click here for a larger view of the DC/DC converter drawing
Pin Single Output
1 On/Off (ground this pin to turn the output off)
2 - DC In
3 +DC In
4 No connection
5 + 12VDC Out
6 - DC Out
7 Trim
This is an "x-ray view" from the top, showing what the PC board pattern will look like
Pin out list

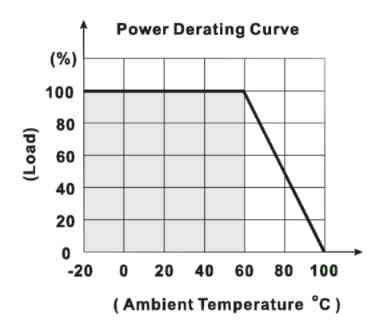

Derating curve at high temperatures
Free Protel CAD files and Gerber files of a circuit board to fit this unit:

Pick-Place-for-SU20-socket.txt
BOM-for-SU20-socket.bom
BOM in PDF Format
SU20-socket.REP
SU20-socket.GTS
SU20-socket.GTP
SU20-socket.GTL
SU20-socket.GPT
SU20-socket.GPB
SU20-socket.GM4
SU20-socket.GKO
SU20-socket.GG1
SU20-socket.GD1
SU20-socket.GBS
SU20-socket.GBP
SU20-socket.DRR
SU20-socket.DRL
SU20-socket.apr
SU20-socket.TXT
SU20-socket.GTO
SU20-socket.GBL
SU20.DDB



You can add this artwork to your own design, make this board yourself, or you can purchase it from us, either as a bare board or with the connectors, trimpot and capacitor soldered on. We can also pot this as a module if you like.

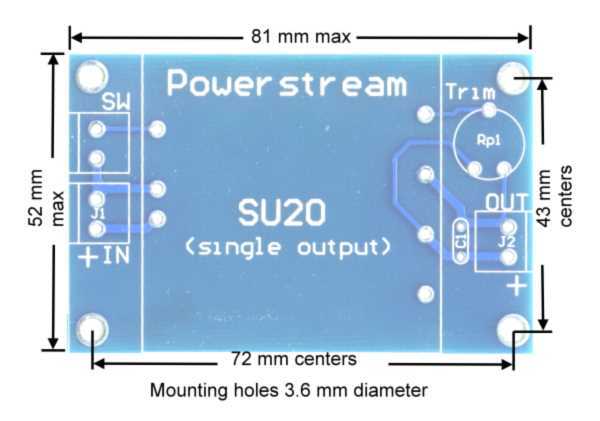

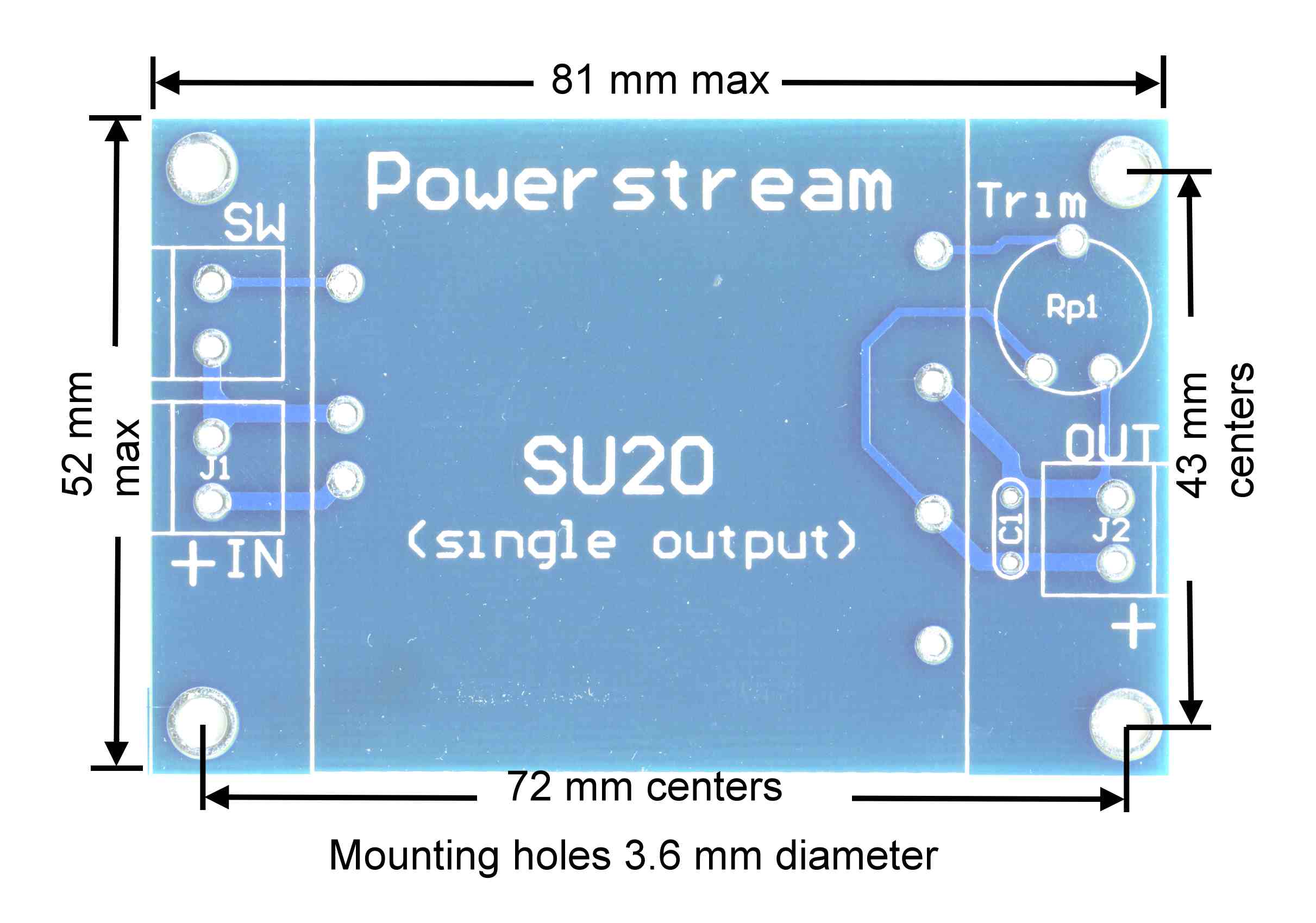

Circuit board for mounting the SU20 series DC/DC converters
12 to 12 volt converter mounted on the circuit boad
The fully populated board.

Advantages:

OEM Battery Chargers Inexpensive High Current Switchmode DC/DC Converter.

OEM Battery Chargers High efficiency approximately 80%.

OEM Power Supplies Multiple outputs available, just ask.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Extra Wide input voltage range.
