Wall mount 2 Cell Lithium-Ion and lithium-polymer chargers 2000 mA with universal AC input

Lithium-Ion Battery Pack Charger 3 cell pack
More Lithium Battery Chargers from PowerStream
Lithium-Ion Battery two cell charger

Lithium-Ion Battery Chargers for OEMs.

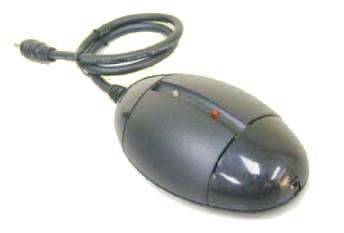

This battery charger is a microprocessor controlled unit designed exclusively for charging 2 cell 7.2 V or 7.4 V or 8.4V li-ion packs. Including lithium-ion and lithium polymer (lipo, li-po, li-poly) battery packs. It has led indicators to indicate the current operating mode of the charger. This battery charger complies with applicable safety agency requirements, and it is listed with TUV, TUV and CE. This is an 8.4V peak battery charger.
PST-P2012-L2 For charging 2 cell lithium packs $27
Quantity 1-9 10-49 50-99 100-499 500+
  $27 $23 $22 $17 $14
PST-WX12 ---- Output adapter barrel plug kit
plugset $7.00
barrel connector alligator clip adapter Optional 18" alligator cord adapter $3.25
SDY-C53F (ZHJX002)
adapters with a barrel connector input and screw terminal output
 For adapting the barrel connector output to screw terminals  $2.50 each

PST-P2012-L2 2 Cell Pack Li-ion Battery Charger



NO

ITEM

UNIT

SPECIFICATION

REMARK

INPUT




Rating Input Voltage

V ac

100~240Vac 50/60Hz




Input voltage range

V ac

90~264Vac




Rating Input Current

A

0.2Arms

Test Conditions: INPUT:220V OUTPUT:Full load



Max. input power

W

16



OUTPUT




Rating output voltage

V dc

8.4V




Output voltage range

V dc

6VDC ~ 8.5VDC




Suitable for Battery type



7.2V LI-ION




Constant Charge current

A

2 A (+0.15A)




Constant Voltage

V

8.45V (+-0.1V)




Charge end current

A

<0.1




Typical charge time

hour

1~1.5hours

Test Conditions:

For 3.6Ah Li-ion pack



Max. output power

W

16.4W




Hold-on time

ms

20




Ripple current

mA

50

Test Conditions:

Input: 220Vac Output: Full load



Charge finish condition



V>8.3V + I<0.1A




LED color



Red: charging Green: finish/idle




Output short-circuit protect



Yes




Efficiency

%

>70%

Test Conditions:

At max. load

Environment




Operate temperature

·C

-10 ~ +40

Full load & natural convection.



Operate humidity

%RH

< +90

Relative humidity, non-condensing.



Storage temperature

·C

-40 ~ +70




Storage humidity

%RH

0 ~ +95

Relative humidity, non-condensing.



Cooling



Natural convection




Temperature factor

%




Vibration resistance



5MM/50HZ/600S

Non-operating condition.



Impact resistance



1 meter drop test >= 3 times

Non-operating condition.

Mechanical




Weight

g

120 grams




Size

mm

81x43x40 mm

Case only



Connectors



5.5 x 2.1 mm barrel, others available on special order in quantity, adapter plugs available (see below)



Safety




Max. temperature rise

·C

< 40 on casing

At any line and Max. Load



Safety standards

CE/cTUVus/PSE/CCC

Designed to GB4943 UL1950 EN60950




EMC standard



EN55022 B




MTBF

hrs

30000




Limited power source

VA

50




ESD

kV

8.0




Hi-Pot Insulation

V

i/p to o/p: 3000 (1 min.)

For final unit, cut-off current =10mA


Twelve optional DC Plugs slip over the 5.5 x 2.1 mm connector if desired.
plugset
  • 2.35 OD x 0.7 ID Barrel
  • 3.0 OD x 1.1 ID Barrel
  • 3.5 OD x 1.35 ID Barrel
  • 4.0 OD x 1.7 ID Barrel
  • 4.75 mm OD x 1.75 mm ID Barrel EIAJ-03
  • 5.0 mm OD x 3.5 mm ID with center pin
  • 5.5 mm OD x 1.5 mm ID type 2 Barrel
  • 5.5 mm OD x 2.5 mm ID Barrel
  • 6.3 OD x 3.0 ID center pin Barrel
  • 6.0 OD x 4.4 ID center pin Barrel
  • 7.4 mm OD x 5.0 center pin ID Barrel
  • 7.9 OD x 5.6 ID center pin Barrel

Specifications:

OEM Battery Chargers Input Voltage: 100 - 240 Vac, 50/60 Hz.

OEM Battery Chargers Output Voltage: Up to 8.4 Vdc controlled by battery charger

OEM Power Supplies Output current: up to 1.2 A ±0.1 A max., controlled by battery charger

OEM Power Supplies Temperature: -10 to +45° C, Operating -40 to +70° C, non-Operating

Universal Power Input OEM Power Supplies and OEM Battery Chargers Humidity: Indoor 90% R.H. @ 35° Celsius, Non-Condensing
