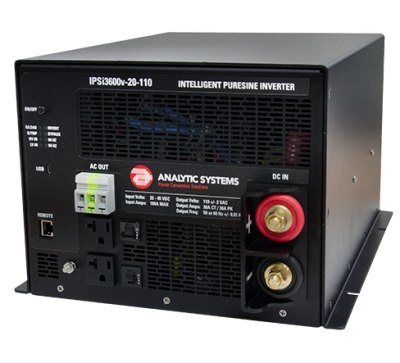

3600 Watt Heavy industry and military grade pure sine wave DC/AC inverters, 28VDC, 48VDC and 125VDC with 115VAC and 220VAC Versions, C.O.T.S.

Pure Sine Wave Inverters 2400 watts, Miltary COTS
More special purpose inverters from PowerStream


  • Pure sine wave precisely duplicates household AC voltage.
  • Extra heavy filtering to isolate noise from equipment sharing the same battery
  • Suitable for any computer that requires less than 3600 watts continuous.
  • Ultra quiet with no electrical interference.
  • Over temperature protected
  • Very rugged and reliable, conformal coated electronics.
  • Low voltage warning and shutdown to protect the batteries
  • Suitable for operation with lead acid, sealed lead acid, lithium ion and lithium iron phosphate batteries.
  • Two standard AC sockets plus a "hard-wire" connector.
  • Thermostatically controlled fan comes on when needed.
  • Isolated, can be used in positive or negative ground applications.
  • Crystal-controlled for precise timing for digital clocks and controllers
  • Manufactured in accordance with COTS standard IPC-A-610.
Using the free to download 'Power Wizard' software, the user can select output frequency, output voltage and low voltage shutdown parameters from any laptop through the standard USB interface.
600 watt DC/AC inverters 24VDC to 110VAC 24VDC to 220VAC 48VDC and 72VDC to 110VAC 48VDC and 72VDC to 220VAC 125VDC (100-140VDC) to 110VAC 125VDC (100-140VDC) to 220VAC
Part Number
and Price
PIPSi3600-20-110
Allow up to 45 days for manufacturing
$3313
PIPSi3600-20-220
Allow up to 45 days for manufacturing
$3396
PIPSi3600-40-110
Allow up to 45 days for manufacturing
$3313
PIPSi3600-40-220
Allow up to 45 days for manufacturing
$3396
PIPSi3600-125-110
Allow up to 45 days for manufacturing
$3763
PIPSi3600-125-220
Allow up to 45 days for manufacturing
$3846
Country of Origin Canada, NAFTA eligible
Input Voltage 20-40VDC
Suitable for 24V 28V 32V or 36V systems
40-90VDC
Suitable for 48V, 64V or 72V systems
125VDC nominal
100VDC to 140VDC
Input Amps 200 max (with 20V input and 3600W output) 100A   40A
Output Voltage 110VAC ±10VAC user adjustable 220VAC ± 20VAC
Output Frequency 60 Hz or 50 Hz user selectable
Frequency accuracy Crystal controlled ±0.01 Hz
Max Output Current(s) 36 Amps
10 minutes maximum
18 Amps
10 minutes maximum

Max Output Power 3600 watts
Continuous Output Current 30 Amps 15 Amps
Continuous Output Power 3600VA 3600VA
Output current limit? Yes
Operating Temperature Range -40°C to +50°C
Humidity 0-95% non-condensing
Efficiency >90 % at full power
Output Distortion <2% at 3600W into a resistive load
Line Regulation < ±2%
Load regulation < ±2%
Isolation Fully Isolated
>1500 volts isolation from case to output terminals or between input and output terminals. >500V isolation between input terminals and case

Duty Cycle Peak power for 10 minutes maximum, continuous power 24 hours per day
On/off switch Yes
Remote power on/off No
Input Fuse Yes
Input Connections DC Input Connections -Bolt terminals
Output Connections AC Output Connection - GTS02R-20-19P027
Protection Over Voltage , Over Current, Short Circuit , Reverse Polarity , Over Load
Dimensions 397 x 305 x 213 mm (15.6 x 12 x 8 inches)
Drawings see below
Weight 69.5 lbs, 31.5 Kg
Audible Noise 34.5 dB at 3ft when fan is operating
Cooling Fan comes on when needed
Vibration Designed to meet MIL-STD-810F, Method 514-3 and Cat-1 Proc 1, MIL-STD-461F, IPC-A-610
Service life 10 years
Warranty 3 years
