Cylindrical primary lithium batteries with foil packaging

primary foil packaged lithium cell CR08600 electronic cigarette battery

This cell has a foil pakaging like the lithium polymer cells, but it is cyclindrical, and not rechargeable. The nominal voltage is 3.0V, as the chemistry is lithium metal-manganese dioxide. These are used in electronic cigarettes as well as other products.

Size Type Nominal Voltage Nominal Capacity
Amp-hrs
Nominal Current
mA
Pulse Current
mA
Mass Size Data sheet
CP08600
AKA
CR08600
Cylindrical "electronic cigarette" style 3.0 V 400 mAH 500 mA 1200 mA 5.2 grams 8.2 mm diameter,
55mm long
CP08600
CR08570
AKA
CP08570
  3.0V 370 mAH 500 mA 1200 m A   8.2 mm diameter, 57.6 mm long CP08570
  Quantity 1-99 100-999 1000-9999 10000+
CP08600
AKA
CR08600
Special order $5.00 $2.00 $1.38 $1.11
CR08570 add_to_cart.gif $5.00 $2.00 $1.38 $1.11

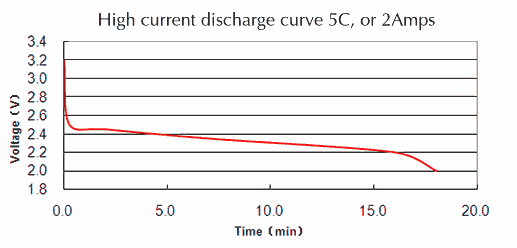

discharge curve of the cr08600 batteryAdvantages:
  • High energy densities, 230WH/kg, 413mWH/cm^3
  • High operating voltage, 3V nominal
  • Much better voltage hold-up during discharge than alklaine cells
  • Polymer foil casing cannot build up pressure, so cannot explode
  • Low ferromagetism, only the nickel foil tabs are magnetic
  • High discharge current compared with size and capacity
  • Storage temperature -20°C to +40°C
  • Operating temperature -20°C to +60°C (battery impedance increases at low temperatures)
  • Self-Discharge rate: <20% per year at 30°C storage temperature
  • UL, CE, ROHS

Notes:
