Versatile DC input charger charges Lead Acid, NiMH, NiCad, Li-Ion batteries
Universal battery charger for lead acid, NiMH, NiCad and Li-ion batteries
Smart charger that can charge batteries up to about 15 volts.



This is a convenient charger to allow charging of battery packs (and cells) between 3.6 volts and 15 volt batteries.

It also can discharge batteries, and measure the amp hour capacity during charge or discharge.
Quantity Price
PST-DCN50 with alligator clips

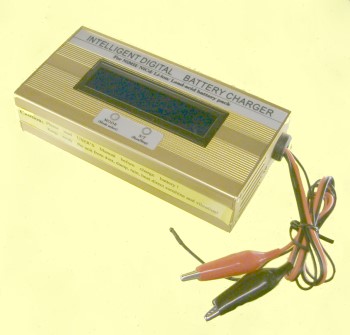

Picture of charger		 Universal battery charger Out of stock for the foreseeable future


General Information
Model PST-DCN50
Name Universal battery pack charger
Type Battery for R&D, product development, R/C, Robots, instruments, toys
ROHS ROHS available on special order

Technical Information
Rated input voltage 10-18VDC 4 Amps maximum
When set for Lead Acid charging Charges 6 volt or 12 volt lead acid batteries
Battery size 0.7 AH to 14+ AH
Charging current Adjustable between 0.5A and 2.5A in 0.5 amp steps
Discharging current 0.5 Amps
Capacity measurement Displayed after charging or discharging
When set for Lithium ion charging Charges 1, 2, 3 or 4 cell lithium-ion battery packs
Battery Size 500 mAH to 10+AH
Charging current 0.5 Amps to 2.5Amps in half amp steps
Discharge current 0.5 amps
Capacity measurement Displayed after charging or discharging

When set for NiMH / NiCad Charges 3, 4, 5, 6, 7, 8, 9, 10, 11, or 12 cell battery packs
Battery Size 500 mAH to 10+AH
Charging current 0.5 Amps to 2.5 Amps in 1/2 amp steps
Discharge current 0.5 amps
Capacity measurement Displayed after charging or discharging
Algorithm Uses the thermistor included with the charger
Weight About 430 grams, 1 pound
Cooling Fan cooled
Size 76 x 35 x 153 mm, 3 x 1.4 x 6 inches
Indicators LCD dot matrix display
Link to PDF Manual Click here for PDF Users Manual

Optional DC Plugs slip over the 5.5 x 2.1 mm connector if desired.
plugset
3.5 OD x 1.35 ID Barrel, 4.75 mm OD x 1.75 mm ID Barrel EIAJ-03, 5.0 mm OD x 3.5 mm ID with center pin, 5.5 mm OD x 2.5 mm ID type 2, 5.5 mm OD x 2.5 mm ID Barrel, 6.0 OD x 4.5 ID center pin, 6.5 mm OD x 3.0 mm ID Barrel
