30 Watt Dual Output Fully Isolated DC/DC Converter brick at 1/2 price; 48VDC input and ±12VDC output

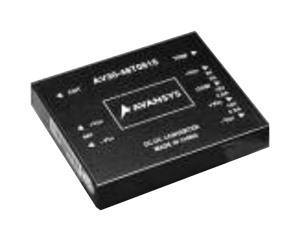

5V +12V, -12V DC half brick converterAV30-48D12 plus and minus 12 volt output, 48 volt input with circuit board

__________________________________________________________________________

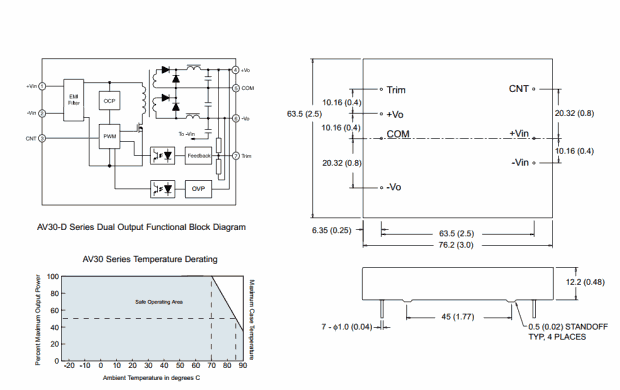

AV30- triple output dc converter drawing
Pin Dual
1 Control (low off, high on (>10V on)
2 +Vin
3 -Vin
4 Trim
5 + 12 VDC out
6 Common VDC out
7 - 12 VDC out

Price
AV30-48D12 $49.00
AV30-48D12-complete including circuit board $62.00
Avansys AV30-48D12 triple output DC to DC 30 watt converter.

Input: 36 to 72VDC.
Output: ± 12VDC 1.25A each
Triple output half-brick format
Potted construction uses state-of-the-art aluminum circuit board technology.
Input under-voltage lockout.
48VDC input.
1500V isolation.
Switching Frequency: 300 kHz
Remote: >10V "High" turns on
85mA P-P noise voltage
90 °C baseplate operation.
1.2 million hours MTBF.
Short circuit, reverse polarity (by shunt diode) and over-voltage protection
120 grams, 4.2 oz.
Part Number Input Output Max Current Max Power Form Factor
AV30-48D12 36-72 VDC ±12 V ±1.25 Amp 30 Watts non-standard half brick PDF Data Sheet
Link to gerber files for a matching circuit board
