10 Watt DC Converter module with 48VDC input and 12V output at half price AV10-48S12


10 watt DC/DC converter module

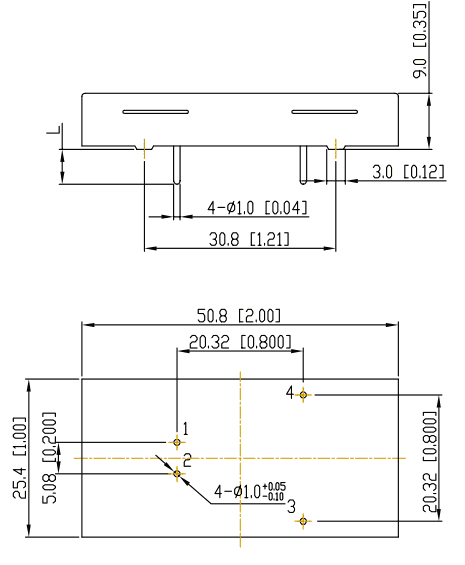

Click here for a larger view of the DC/DC converter View from the bottom
Pin Single Output
1 + Input
2 - Input
3 + Output
4 - Output
These printed circuit mount dc to dc converter bricks closely regulate the output voltage over a range of input voltages.

Isolated DC converter modules with 48V input and single 12V output


AV10-48S12 12V output 0.84A 10W $24 Add to cart
Data Value
Input voltage 48V 36V to 72V
Output voltage 12V 0.84A 10 Watts
Setpoint accuracy ±1%
Voltage adjust none
Line regulation ±0.2%
Load regulation ±0.5%
Ripple and noise 100 mV p-p
Transient response 200 microsecond max for a 25% step
Control pin none
Temperature -25°C to 95°C operating -40°C to 105°C storage
Agency approval UL60950, CSA22.2-60950, TUV EN60950
Data Sheet Full data sheet here
Weight 48g, 1.7 oz
Efficiency ~85%
MTBF > 200,000 hours Bellcore TR332

Advantages:

OEM Battery Chargers Inexpensive Switchmode 48 volt to12V DC/DC Converter

OEM Battery Chargers High efficiency: approximately 85%.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Wide input voltage range.
