AC/DC and AC/AC Transformer Adapters 15 to 40 Watt

Wall Warts from PowerStream

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry!



Note: click here for all AC/AC wallmount power supplies in stock

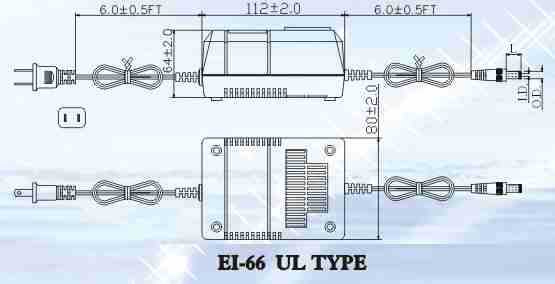

Dimensions of 15 to 40 Watt Desk top Transformers

AC /DC Adpaters 15-40 Watt nominal, Wall Mount, JOD-66U style.

For more power supplies from PowerStream click here

How to Design with Wall Mount Power Supplies

These transformer based power supplies are only available in quantities of 1000+ pieces per shipment. Call or write for a quote.
Model No. Rated Output Voltage Rated Output Current Rated Output
JOD-66U-01 5VDC 3A 15VA
JOD-66U-02 6VDC 3A 18VA
JOD-66U-03 7.5VDC 3A 22.5VA
JOD-66U-04 9VDC 3A 27VA
JOD-66U-05 9VDC 2.5A 22.5VA
JOD-66U-06 10VDC 3A 30VA
JOD-66U-07 12VDC 2.5A 30VA
JOD-66U-08 14.5VDC 2A 29VA
JOD-66U-09 13.5VDC 2A 27VA
JOD-66U-010 13.5VDC 2.22A 30VA
JOD-66U-011 15VDC 2A 30VA
JOD-66U-012 15VDC 2.5A 37.5VA
JOD-66U-013 16VDC 2A 32VA
JOD-66U-014 16VDC 2.5A 40VA
JOD-66U-015 18VDC 2A 36VA
JOD-66U-016 20VDC 2A 40VA
JOD-66U-017 24VDC 1.25A 30VA
JOD-66U-018 24VDC 1.5A 36VA
JOD-66U-01A 5VAC 4A 20VA
JOD-66U-02A 6VAC 4A 24VA
JOD-66U-03A 7.5VAC 4A 30VA
JOD-66U-04A 9VAC 4A 36VA
JOD-66U-05A 9VAC 3A 27VA
JOD-66U-06A 10VAC 3A 30VA
JOD-66U-07A 12VAC 2.5A 30VA
JOD-66U-08A 12VAC 3A 36VA
JOD-66U-09A 12VAC 3.33A 40VA
JOD-66U-10A 13.5VAC 2.22A 30VA
JOD-66U-11A 15VAC 2A 30VA
JOD-66U-12A 15VAC 2.5A 37.5VA
JOD-66U-13A 16VAC 2A 32VA
JOD-66U-14A 16VAC 2.5A 40VA
JOD-66U-15A 18VAC 2A 36VA
JOD-66U-16A 20VAC 2A 40VA
JOD-66U-17A 24VAC 1.25A 30VA
JOD-66U-18A 24VAC 1.5A 36VA
Connector Types
I. D O. D Long Straight Right Angle Type
No.
1 2.1 5.5 V V Barrel
2 2.5 5.5 V V Barrel
3   3.5   V Barrel
4 2.1 5.0 V V Barrel
5 2.5 5.0 V V Barrel
6 1.3 3.5 V V Barrel
7 1.0 3.5 V V Barrel
8 1.0 3.8 V V Barrel
9 0.7 2.35 9.5 V V New EIAJ Female
10 1.7 4.0 9.5 V V New EIAJ Female
11 1.7 4.75 9.5 V V New EIAJ Female
12 1.0 5.5 9.5 V V New EIAJ Female
13 1.4 6.5 9.5 V V New EIAJ Female

Voltages available in the above tables.
9 VAC 5 VAC 6 VAC 7.5 VAC
10 VAC 12 VAC 13.5 VAC 15 VAC 16 VAC 18 VAC 20 VAC 24 VAC 6 VDC 7.5 VDC 9 VDC
12 VDC 5 VDC 13.5 VDC 14.5 VDC 15 VDC
16 VDC 18 VDC 20 VDC 24 VDC Volts AC Volts DC
ISO 9001 Certified FactoryUL listed wall mount power supplies, AC-AC and AC-DC
