12 volt 18 Amp, 216 Watt
Regulated Switching Power Supply |
|
|
This 12 volt AC/DC switching power supply adapter is useful for any
application requiring 12 volts at 18 amps or less.
.................. |
 Replaces the Dell power supply Dell Y2515 shown at right:
|
|
Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for
OEMs in a hurry!
Since the Dell Y2515 is no longer available we have created this new power supply to take its
place.
| PST-AC12180 12 Volt AC/DC Power Supply Adapters |
| Quantity |
1-10 |
| Price |
$199.00
|
Model : PST-12180 Name : 12V DC Switching Power Supply
| Model Number |
PST-AC12180 Switching Power Supply |
| Input Voltage Range |
100-240 VAC 50/60 Hz |
| Peak Output Power |
200 Watts, 220+ watts surge |
| Load Regulation |
±3% over rated current |
| Output Voltage Nominal |
12 VDC |
| Input Connector |
IEC C13, Class I input socket allows cords for any country to be used, the North
American cord is included. |
| Dimensions |
200.0*100.0*50.0 mm (7.75 inch x 2 inch x 3.75) |
| Agency approvals |
CE, ROHS |
| Weight |
1.5 kilograms, 3.25 pounds without the AC cord |
| Compatible with |
Dell Y2515, Delta ADP-220AB B, Dell Optiplex SX280 power supply, Dell AC Adapter
DA-2 Series, Dell P/N: 5Y002, Dell P/N: D3860 |
| Connector |
|
|
|

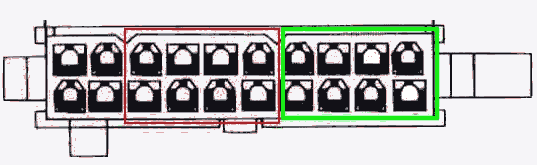

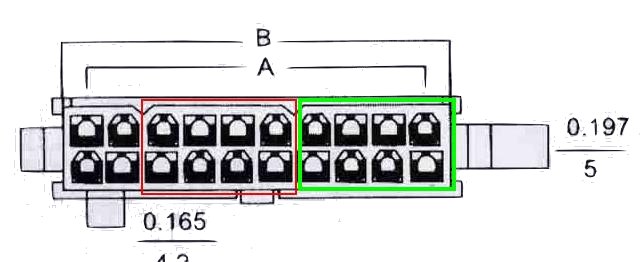

The connector fits the MOLEX ATX power motherboard-style socket in two places, the one outlined in
red, and the position outlined in green, though the pin assignments don't match the ATX standard.
The connector on the
end of the cable is a MOLEX 4.2mm pitch MiniFit Jr. However, Dell used a special configuration for this which has the rows
reversed from the standard 8 pin MiniFit Jr. It does work with the ATX power socket as shown. |
|
Pin 2, 3, 4, +12 volts
Pin 6, 7, 8 ground
Pin 5 Remote, connect to ground to turn on the power
|
|
Advantages:
 Inexpensive switchmode 220 watt AC switching power supply AC/
DC converter.
Inexpensive fully regulated power supply with IEC input and
Efficiency >85%, depending on input voltage, and output
power. |
|
|
|
|
|
