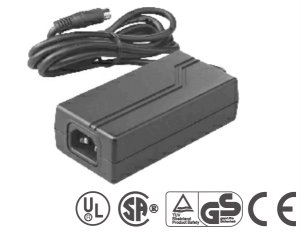

Triple output 25 watt power supply, +12V, -12V, 5V

triple output power supply, 12V, -12V, 5V, 25 watts

This is new original equipment for Skynet SNP-P051 and Hybrid Networks DADP-201YAZZ.

UP05253A-01P 12 Volt AC/DC Power Supply Adapters
Part Number
  SNP-P051
UP05253A-01P
DADP-2011YAZZ
Incuding AC cord
  Quantity 1-9 10+
SNP-P051 Triple output power supply add_to_cart.gif $29.85 $24.50

  Quantity 1-9 10+
DADP-2011YAZZ triple output power supply add_to_cart.gif $29.85 $24.50

Model Number SNP-P051 Skynet UP05253A-01P Switching Power Supply
Input Voltage Range 90-240VAC 47-63Hz
Peak Output Power 25 Watts continuous
Load Regulation ±3% over rated current
Output Voltage Nominal 12V 1A, 1.5A max, 2A peak
-12V 0.3A, 0.5A max, 1 peak
5V 2A, 3 max, 4 peak
Hold up time 16mS typical
Leakage current < 0.5 mA
Short circuit protection continuous, hiccup
Overvoltage protectin 5V output only
Efficiency 70% typical
Input connector IEC C14 socket for a C15 plug
Storage temperature -40°C to +85°C
Operating temperature 0°C to +50°C
Derating -2%/°C from 40°C to 50°C
Cooling Free-air convection
Output Connector 5 pin 180° DIN connector
EMI Metts FCC/CISPR 22 Class B Specifications
Agency approvals CB, Ce, TUV-GS, UL, CSA
Weight 0.3 kilograms, 0.66 lb pounds, 10.5 oz without the AC cord
Compatible with SNP-P051, UP05253A-O1P
Dimensions 40 mm x 70 mm x 40 mm (see drawing below)

Connector
Here is the connector pinout. It is a 5 pin 180° DIN connector
5 pin DIN 180 degree output connector
Shell................. N/C

Pin 1 ............... Ground
Pin 2 ............... -12v
Pin 3 ............... Ground
Pin 4 ............... +12V
Pin 5 ............... +5V

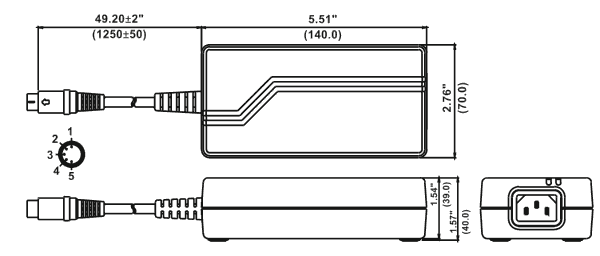

dimensioned drawing
