5 VDC, 2000 mA (2.0 amp) Switchmode Power Supply for USB Hubs

5 volt 500 mA switching power supply with 5.5 x 2.1 mm barrel connector
Click here for more 5 volt power supplies
5 volt power supply

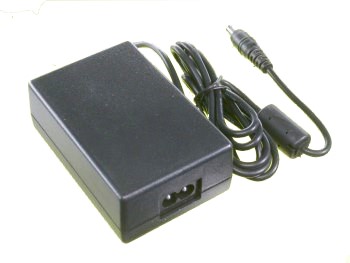

5 volt 2 amp DC power supply for use with USB hubs.

This is a compact, high quality, 5V switchmode regulated power supply, 10 watts continuous for use as an auxiliary power supply for USB hubs.

A USB hub can take its power from the computer, but since the amount a single USB socket can source is limited most USB hubs have an optional connector to connect a power supply to. This allows more power to be used by devices plugged into the hub. This is particularly useful if you need to charge devices from the hub.

This power supply can supply the voltage needed. The connector kit will fit all the hubs that we have tried.
Quantity 1-10
Price PST-AC0520-HUB
5 volt power supply
$24.75 add_to_cart.gif
PST-WX12
Optional 12 piece Output adapter barrel plug kit
plugset
$7.00
Polarity reversing adapter for center-negative products
5.5x2.1mm barrel connector polarity switcher
$3.50
SDY-C53F (ZHJX002)
adapters with a barrel connector input and screw terminal output
To adapt the barrel connector to screw terminals
$2.50 each

Part Number PST-AC0520-HUB
Parameter Data
Output 5 Volts DC
Output Power 10 Watts maximum 2.0 amps, 2000 mA
Input Voltage 100-240 VAC, 50-60 Hz
Input Frequency 50-60 Hz
Temperature 0° to 40° C Operating
Size Approximately 50 x 85 x 32 mm
(2 x 3.3 x 1.25 inches)
Weight 5.5 oz. (155 grams) without AC cord,
11 oz. (300 grams) with AC cord
Agency Approvals CE
Output connector 5.5 x 2.1 mm x 9.6 barrel connector, Center Positive
a variety of slip-on semi-permanent connectors are available below.
AC plug Removable IEC C14 connector makes it easy to use international mains cords.
Includes the following DC Plugs slip over the 5.5 x 2.1 mm connector if needed.
plugset
  • 2.35 OD x 0.7 ID Barrel
  • 3.0 OD x 1.1 ID Barrel
  • 3.5 OD x 1.35 ID Barrel
  • 4.0 OD x 1.7 ID Barrel
  • 4.75 mm OD x 1.75 mm ID Barrel EIAJ-03
  • 5.0 mm OD x 3.5 mm ID with center pin
  • 5.5 mm OD x 1.5 mm ID type 2 Barrel
  • 5.5 mm OD x 2.5 mm ID Barrel
  • 6.3 OD x 3.0 ID center pin Barrel
  • 6.0 OD x 4.4 ID center pin Barrel
  • 7.4 mm OD x 5.0 center pin ID Barrel
  • 7.9 OD x 5.6 ID center pin Barrel
Advantages:

OEM Battery Chargers Universal input switchmode power supply with fixed 5 volt output voltage for USB HUBs.
