3.3 VDC, 3000 mA (3.0 amp) or 1000mA (1 amp) Switchmode wall mount Power Supply

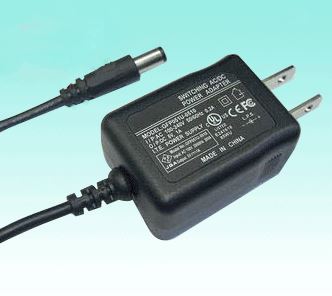

3.3 volt 3 Amp wall mount power supply

Tiny 3.3 volt DC wall-mount Universal AC regulated power supply, 3000 mA maximum.

This is a compact, high quality, 3.3V switchmode regulated power supply, 10 watts continuous

.
Prices
Quantity 1-10 11-50 51-100 101+
3.3 volt 3 Amp wall mount power supply
PST-AC0330W 3.3V 3A, 10W wall mount. 		$13.75 add_to_cart.gif $12.50 10.25 9.95
3.3V 1A wall mount power supply
PST-AC0310W 3.3V 1Amp 3.3W wall mount		 $10.95add_to_cart.gif
PST-WX12
Optional 12 piece Output adapter barrel plug kit
plugset 		$7.00
add_to_cart.png 		Call
SDY-C53F (ZHJX002)
adapters with a barrel connector input and screw terminal output
To adapt the barrel connector to screw terminals		 $2.50 each
Polarity reversing adapter for center-negative products
5.5x2.1mm barrel connector polarity switcher		 $3.50
barrel connector alligator clip adapter  $3.25


SWITCHING POWER AC ADAPTER PST-AC0330
    PART NO. GFP181U-A330
INPUT REQUIREMENTS
ITEM SPECIFICATION MIN TYPICAL MAX
NORMAL AC INPUT VOLTAGE SINGLE PHASE 100VAC 110VAC / 220VAC 240VAC
AC INPUT VOLTAGE RANGE SINGLE PHASE 90VAC 110VAC / 220VAC 264VAC
AC INPUT FREQUENCY SINGLE PHASE 47Hz 50/60Hz 63Hz
AC INPUT CURRENT TYPICAL INPUT VOLTAGE & OUTPUT AT FULL LOAD     350mA
AC INRUSH CURRENT TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD , 25°C     30A
EFFICIENCY TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD 70%

OUTPUT SPECIFICATION
ITEM SPECIFICATION MIN TYPICAL MAX
NORMAL DC OUTPUT VOLTAGE     3.3VDC
DC OUTPUT VOLTAGE RANGE TYPICAL OUTPUT VOLTAGE ±5% 3.1V   3.7V
PEAK LOAD CURRENT TIME < 60 Seconds     3.3A
RIPPLE TYPICAL INPUT VOLTAGE , TYPICAL LOAD CURRENT , 25°C     50mV
HOLD-UP TIME AT TYPICAL INPUT VOLTAGE AND FULL LOAD 10mS
TURN-ON DELAY TYPICAL INPUT VOLTAGE AND TUP LOAD CURRENT     1 SEC
OVER CURRENT PROTECTION AUTO RECOVERY
SHORT CIRCUIT PROTECTION THE ADAPTER SHALL NOT DAMAGE BY SHORT THE DC OUTPUT TO GROUND
OVER VOLTAGE PROTECTION     4.0V 5.0V


OVERVIEW

DIMENSIONS     64 X 50 X 26.5 mm
WEIGHT     ABOUT 150g
AC INPUT TYPE     WALL MOUNT
DC OUTPUT Connector     5.5×2.1×10.5 S TYPE
Center Positive		 barrel connector photo

Polarity     Center Positive center positive symbol
Optional DC Plugs slip over the 5.5 x 2.1 mm connector if desired. Optional plug kit
plugset
  • 2.35 OD x 0.7 ID Barrel
  • 3.0 OD x 1.1 ID Barrel
  • 3.5 OD x 1.35 ID Barrel
  • 4.0 OD x 1.7 ID Barrel
  • 4.75 mm OD x 1.75 mm ID Barrel EIAJ-03
  • 5.0 mm OD x 3.5 mm ID with center pin
  • 5.5 mm OD x 1.5 mm ID type 2 Barrel
  • 5.5 mm OD x 2.5 mm ID Barrel
  • 6.3 OD x 3.0 ID center pin Barrel
  • 6.0 OD x 4.4 ID center pin Barrel
  • 7.4 mm OD x 5.0 center pin ID Barrel
  • 7.9 OD x 5.6 ID center pin Barrel
DC Output cable     SPT-1 18AWG WIRE
CASE MATERIAL     :94V-0 ABS+PC
PCB MATERIAL     94V-0


SAFETY

COMPLY SAFETY STANDARDS     STANDARD FILE NO.
UL cUL       E241618
PSE       JQE10993
Form       Double Insulated
LPS       Limited Power Source L.P.S.
        ITE Power Supply
        For Indoor Use
EMI       FCC

QC CHECK
100% Inspection before shipment as specified below:
(1)DC PLUG Polarity CHECK
(2)OCP FUNCTION CHECK
(3)DC OUTPUT VOLTAGE CHECK
(4)HIPOT & INSULATION CHECK
(5)Appearance CHECK
MECHANICAL

ITEM   SPECIFICATION OR TEST CONDITION   ACCEPTANCE CRITERIA
CORD BENDING TEST   NORMAL TEMPERATURE   NO SHORT CIRCUIT
    THE CORD SHALL WITHSTAND WEIGHT OF 200 grams SWINGING FROM LEFT TO RIGHT AT AN ANGLE OF 60°C 1000 CYCLE TIMES MIN.   NO BREAKAGE OF THE CORD, NO SHORT CIRCUIT

    SHALL WITHSTAND WEIGHT OF 1 NEWTON SWINGING FROM LEFT TO RIGHT AT AN ANGLE OF 60°C. 1000 CYCLE TIMES MIN. BENDING SPEED 40 CYCLES/MINUTE


VIBRATION   FREQUENCY RANGE: 10~55Hz AMPLITUDE: 1.5mm ACCELERATION: 1 G SWEEP 1 MINUTE FOR X,Y,Z, AXIS EACH   THERE SHALL BE NO ABNORMALITY ON THE APPEARANCE STRUCTURE OR OPERATION



RELIABILITY

ITEM   TEST CONDITION   ACCEPTANCE CRITERIA
TEMPERATURE INCREASE WITH TYPICAL LOAD   TEST AT SURFACE OF THE CASE WITH TYPICAL AC INPUT AND TYPICAL LOAD IN OUTPUT 50/60Hz   TEMPERATURE RISE UNDER 35°C


HI-POT TEST   INPUT TO OUTPUT
    GRADUALLY RAISED FROM 0 TO THE 3000VAC AND HELD AT THAT VALUE FOR 3 Seconds   NO DAMAGE     5mA
INSULATION RESISTANCE   INPUT TO OUTPUT, DC 500V   >50 Megohms
MTBF   TYPICAL INPUT & FULL LOAD, 25°C   50000 HOURS
LIFE   TYPICAL INPUT & FULL LOAD, 40°C   ABOVE 1 YEAR
    TYPICAL INPUT & FULL LOAD, 25°C   ABOVE 2 YEARS
BURN-IN   AT 30°C (±10°C), NORMAL INPUT VOLTAGE   2~4 HOURS
ENVIRONMENT

ITEM   SPECIFICATION OR TEST CONDITION     min. typ. max.
OPERATING TEMPERATURE         0°C   40°C
STORAGE TEMPERATURE         -20°C   85°C
OPERATING HUMIDITY   NON-CONDENSING     5%RH   90%RH
STORAGE HUMIDITY   NON-CONDENSING     5%RH   90%RH

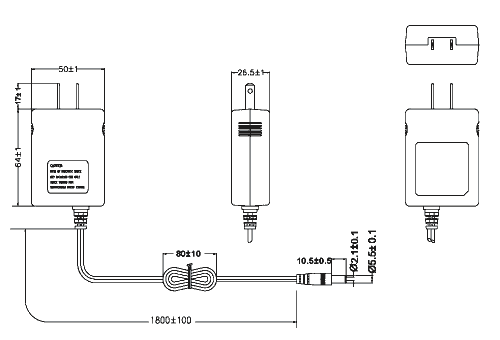

drawing of the wall mount AC/DC converter

OEM Battery Chargers Universal input switchmode power supply with fixed 3.3 volt output voltage, 3 amps or less.

OEM Battery Chargers High efficiency PC power supply for digital cameras and telecom use.

OEM Power Supplies Excellent line and load regulation.
