  High Capacity Rechargeable Lithium-polymer Batteries or Packs in Aluminum BoxesDue to limited resources we cannot accept new customers for these cells, sorry. Home: Battery pack, battery charger, DC-DC converter, battery pack
Lithium Polymer Batteries Break Barriers! Lithium polymer Batteries consisting of many cells in parallel and series in welded aluminum cases

For more battery resources from PowerStream click here:More DC/DC Converters

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry!

12 amp hour Lithium Ion Cell Lithium Iron Phosphate packs are now available, Click here Lithium-Ion Battery Pack Charger 3 cell pack 4 amp, 3 cell lithium ion charger
Large prismatic Lithium Ion cells, 12 AH to 90+ AH, high current, long life, high quality. Battery management and chargers available now. click here   1 amp off-the-shelf charger for 3 cell 10.8 volt lithium-ion or lithium-polymer battery packs 4 amp off-the-shelf for 3 cell 10.8 volt lithium-ion, lithium-polymer battery packs

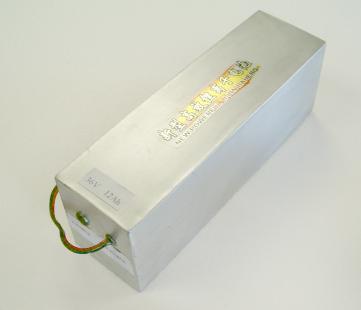

These ready-to-use battery packs are available with about 3-4 week lead time. They consist of a battery of parallel and series lithium-polymer cells and a battery managment board assembled and welded into a sealed aluminum box. It looks like a solid cube of aluminum with wires sticking out of one end. The charger port is a barrel connector, compatible with the chargers listed below.

Model

Nominal
Voltage (V)

Nominal Capacity (Ah)

Dimensions mm

 Weight

L

W

H

 kg

PL10ICP11/106/58-2

36

8

210

120

60

 2.5

PL10ICP11/106/58-2

36

8

550

40

60

 2.5

PL10ICP08/106/58-3

36

10

280

120

60

 3.1

PL10ICP08/106/58-3

36

10

550

50

60

 3.1

PL10ICP11/106/58-3

36

12

300

120

60

 3.7

PL10ICP11/106/58-3

36

12

550

62

60

 3.7

PL10ICP06/83/116-2

36

8

130

90

140

 2.5

PL10ICP06/83/116-2

36

8

470

30

140

 2.5

PL10ICP06/83/116-2

36

8

370

40

140

 2.5

PL10ICP07/83/116-2

36

10

160

90

140

 3.1

PL10ICP07/83/116-2

36

10

470

35

140

 3.1

PL10ICP06/83/116-3

36

12

200

90

140

 3.3

PL10ICP06/83/116-3

36

12

370

40

140

 3.3

PL7ICP11/106/58-2

24

8

150

120

60

 1.9

PL7ICP11/106/58-2

24

8

440

40

60

 1.9

PL7ICP08/106/58-3

24

10

200

120

60

 2.4

PL7ICP08/106/58-3

24

10

440

50

60

 2.4

PL7ICP11/106/58-3

24

12

210

120

60

 2.8

PL7ICP11/106/58-3

24

12

440

62

60

 2.8

PL7ICP06/83/116-3

24

12

140

90

140

 2.8

Advantages:

OEM Battery Chargers Ready to use lithium ion packs, with chargers available

OEM Power Supplies Pacs available in 36 volts and 24 volts, from 8 AH to 12 AH.
