This a semi-custom -delta V fast battery
charger with a microprocessor controlled charge and sense LED display and preset time-out. 230
VAC output, with a European wall-mount AC plug charges packs containing 2 cells, 4 cells, 5
cells, 6 cells, 7 cells, 8 cells or 10 cells by rotary switch, and two selectable charge
rates.
Pricing:
| General Information |
| Model |
PST6168A |
| Name |
Selectable Ni-Cd/Ni-MH Battery Charger with -dV
Detection and Discharge Function |
| Type |
Battery Pack Charger for R/C, Robots,
instruments |
|
| |
| Technical Information |
| Rated voltage |
230 VAC, 50 Hz |
| Rated input power |
28W |
| No. of batteries |
2 cells, 4 cells, 5
cells, 6 cells, 7 cells, 8 cells or 10 cells by rotary switch |
| Setting |
Voltage |
| 2 cells |
2.4 volts
nominal |
| 4 cells |
4.8 volts
nominal |
| 5 cells |
6 volts nominal |
| 6 cells |
7.2 volts
nominal |
| 7 cells |
8.4 volts
nominal |
| 8 cells |
9.6 volts
nominal |
| 10 cells |
12 volts nominal |
| Battery size |
125 mA to 4.5 AH |
| Charging current |
500mA or 1000mA by rotary switch |
| Charger type |
Ni-Cd/Ni-MH Battery Charger |
| Application |
R/C Models, robots, instruments |
| Charging supervision |
-dV, pulsed-and-rest method |
| Discharge function |
Yes |
| Input Frequency |
50 Hz |
| Testing function |
No |
| Battery type |
Ni-Cd/Ni-MH Battery |
| Style |
Desktop |
| Output power |
14W |
| Output voltage |
2.8/5.6/7.0/8.4/9.8/11.2/14.0V
Selectable |
| Output options included |
Alligator clips, 5.5 mm OD x 2.1 mm ID
barrel and Tamiya connector supplied with charger.
More barrel connectors available
separately
|
| Weight |
1000 grams, 1 kg, 2.2 pounds |
| Size |
122 x 78 x 58 mm, 4.8 x 3.1 x 2.3 inches,

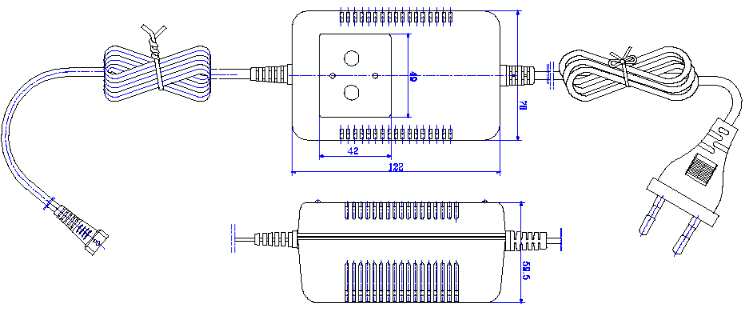

see drawing below |
| Protections |
Reverse Polarity |
| LED Indications |
Power on, but no battery connected |
Black |
|
| Fast Charging |
Red |
| Charged/Trickle Charging |
Green |
| Discharging |
Yellow |
|
Advantages:
 Inexpensive desk
top Nicad and NiMH Battery Charger with peak charge control circuit, European
version.
Adaptable to any
voltage and battery size.
Single LED changes color to indicate state of
charge.
|
