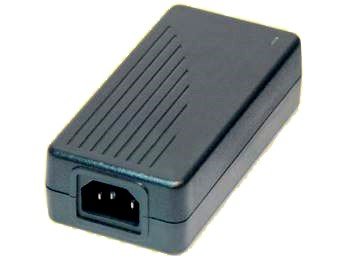

EA1050 Series 50 watt power supplies |
|
 |
This high quality 12 volt AC/DC switching power supply adapter is useful for any
application requiring UL/CUL approved 12 volts at 3 amps or less.
|
|
.
Quantity
Prices |
1-10 $60.00
11-50 $52.00
51-100 $49
101+ $44 |
| MODEL |
Volts/Amps |
Connector |
Price |
| EA1050A-55 |
12V/5A |
5.5x2.5x9x1500mm |
$60.00
 |
| EA1050A-56 |
12V/5A |
2LP connector |
$60.00
|
| EA1050A-57 |
12V/5A |
5.5x2.5x11mm |
$60.00
|
| EA1050A-58 |
12V/5A |
4 PIN DIN(pin 1/2:+, pin 3/4: -) |
$60.00
|
| EA1050A-59 |
12V/5A |
6.5x1.4x10mm, EIAJ5, Fujitsu |
$60.00
|
| EA1050A-60 |
12V/5A |
5.5x2.1x11mm |
$60.00
|
| EA1050A-62 |
12V/5A |
5.5x2.5x11mm, 90° |
$60.00
|
| EA1050A-63 |
12V/5A |
4.8x1.7x11mm |
$60.00
|
| EA1050A-64 |
12V/5A |
4 PIN DIN
(P1:-, P2:+, P3/4/Shield: NC) |
$60.00
|
| EA1050A-65 |
12V/5A |
Strip & Tinned |
$60.00
|
| EA1050A-66 |
12V/5A |
6.3x3.0x11mm |
$60.00
|
| EA1050A-68 |
12V/5A |
5.5x2.1x9mm |
$60.00
|
| EA1050A-69 |
12V/5A |
XLR connector |
$60.00
|
| EA1050A-70 |
12V/5A |
5.5x2.1x7.5mm DC jack with screw |
$60.00
|
| EA1050A-120 |
14V 4.2A |
5.5*2.1*9.5mm ( TOUCH) |
$60.00
|
| EA1050A-50 |
15V/4A |
5.5x2.5x11mm |
$60.00
|
| EA1050A-54 |
15V/4A |
5.5x2.5x9x1500mm |
$60.00
|
| EA1050A-71 |
15V/4A |
5.5*2.1*9.5mm |
$60.00
|
| EA1050A-61 |
16V 4A |
5.5x2.5x11mm |
$60.00
|
| MODEL |
SPEC. |
CONNECTOR |
Price |
| EA1050B-L52 |
18V/3.3A |
5.5x2.1x11mm |
$60.00
|
| EA1050B-53 |
19V/3.16A |
5.5x2.5x11mm |
$60.00
|
| EA1050B-54 |
20V/3A |
6.5x3.0x12mm |
$60.00
|
| EA1050B-55 |
24V/2.5A |
stripped and tinned |
$60.00
|
| EA1050B-56 |
24V/2.5A |
5.5x2.5x11mm |
$60.00
|
Specifications:
|
Model
Item |
EA1050A |
EA1050B |
EA1050C |
EA1050D |
EA1050E |
EA1050F |
EA1050G |
|
Output Voltage |
12~17V |
18V~24V |
12~17V |
18V~24V |
12~17V |
12~17V |
12~17V |
|
Output Rating (Max.) |
60W |
60W |
50W |
50W |
42W |
36W |
30W |
|
Output Current (Max.) |
5A |
3.3A |
4.2A |
2.8A |
3.5A |
3A |
2.5A |
|
Input Voltage (Limit) |
AC 90~264V |
|
Input Frequency |
47~63Hz |
|
Line Regulation |
1% Max. |
|
Load Regulation |
+/- 5% |
|
Ripple & Noise |
1.2% Max. |
|
Efficiency |
78% Typical |
82% Typical |
78% Typical |
82% Typical |
78% Typical |
78% Typical |
78% Typical |
|
Over Voltage Protection |
Yes |
|
Over Current Protection |
Yes |
|
Operating Temperature |
0~40°C |
|
Storage Temperature |
-20 C~85°C |
|
Class or Class |
Class |
|
Safety Standards |
UL60950-1, EN60950-1, IEC60950-1 |
|
Safety(1)/EMC |
UL/CUL,TUV,BSMI,NORDIC,CCC,DoIR+C-Tick,CE,FCC,CB,PSE(15.1~24V) |
|
Safety(2)/EMC |
EK |
--- |
EK,PSB |
|
EK |
EK |
EK |
|
Safety Standards |
UL60065, EN60065, IEC60065 |
|
Safety/EMC |
UL/CUL,TUV,BSMI,CCC,FCC,CB |
|
MTBF |
30,000 hours |
|
LED Indication |
Yes |
|
Dimension |
121L x60W x 34.5H mm |
|
Approx. Weight |
280 grams |
|
Standard Plug |
Optional |
|
|
|
|
|
|
