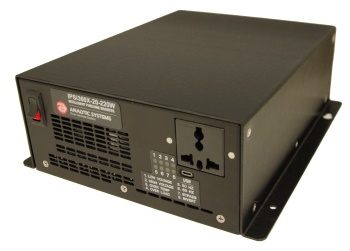

Heavy duty industrial grade pure sine wave DC/AC inverters, 48V or 72VDC input, 110VAC or 220VAC output, 360 watts


High voltage input Pure Sine Wave Inverters  360VA

The range of 72VDC input is 40-80VDC
The range of 48VDC input is also 40V-80V
  • Pure sine wave exactly duplicates household current.
  • Very rugged and reliable.
  • Software adjustable--output voltage plus or minus 10%, frequency 50Hz or 60Hz, low voltage shutdown parameters
  • Low voltage warning and shutdown to protect the batteries
  • Thermostatically controlled fan comes on only when needed.
  • Manufactured in accordance with COTS standard IPC-A-610.
  • Isolated, can be used in positive or negative ground applications.
  • Crystal controlled for precise timing for digital clocks and controllers
  • Suitable for any computer that requires less than 360VA continuous.
  • Extra heavy filtering to isolate noise from equipment sharing the same battery
  • Ultra quiet with no electrical interference.

Using the free to download ‘Inverter Wizard’ software, the user can select output frequency, output voltage, and low voltage shutdown parameters from any Windows laptop through the standard micro-usb interface. This port can also be used to monitor and log input and output voltages, output power and inverter temperature
360 watt DC/AC inverters 48V or 72 volts DC to 110 VAC 48V or 72 volts DC to 220 VAC
Part Number
and Price
IPSi360-40-110
Allow up to 3 weeks for manufacturing
$655
IPSi360-40-220
Allow up to 3 weeks for manufacturing
$696
  Forklift option with extra filtering and surge suppression
IPSi360-40-110F
$729
Forklift option with extra filtering and surge suppression
IPSi360-40-220F
$770
Country of Origin Canada, NAFTA eligible
Input Voltage 40-80VDC nominal 48V or 72V
Output Voltage 110VAC 220VAC
Output Voltage Adjustment ± 10% by USB port and free software
Output Frequency 60 Hz pure sine wave
50 Hz available by software setting through the USB port
Max Output Current(s) 3 Amps continuous, 3.6 Amps peak (10 minutes maximum) 1.5 Amps continuous, 1.8 Amps peak (10 minutes maximum)
Max Output Power 360VA
Remote monitoring Input and output voltages, output power and inverter temperature by USB port
Output current limit? Yes
Operating Temperature Range -25°C to +40°C
Humidity 5-95% non-condensing
Efficiency >90% at full load
Duty Cycle Continuous power 24 hours per day
Output Distortion <5% at full load
Line Regulation < ±2%
Load regulation < ±2%
Isolation Input-Case, Input-Output and Output-Case 1500 VDC
Input Connections DC In – Phoenix VDFK6, 60 Amp, 300V Rating
Output Connections Standard AC receptacle
Protection Over Voltage , Over Current, Short Circuit , Reverse Polarity , Over Load, thermal shutdown with automatic recovery
Agency compliance Designed and built to C22.2 No. 107.1 - 01 and UL 458 and EN60
Dimensions 10.0 in +/- 0.1 in / 25.4 cm +/- 0.3 cm Long
9.08 in +/- 0.1 in / 23.1 cm +/- 0.3 cm Wide (including mounting flanges)
3.48 in +/- 0.1 in / 8.8 cm +/- 0.3 cm High
Weight 12 lbs, 5.4 kg
Cooling Fan comes on when needed
Service life 10 years
Warranty* 3 years *Warranty depends on installation within good engineering practice.
