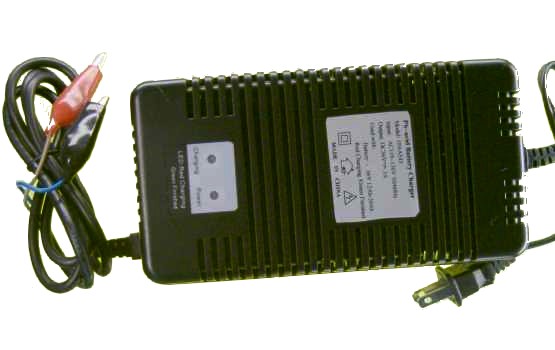

PST-1PAA545 36V Lead-Acid Battery charger

ITEM

UNIT

SPECIFICATION

REMARK

INPUT

Rating Input Voltage

V ac

100~120Vac 50/60Hz

Input voltage range

V ac

90~132Vac

Rating Input Current

A

2.5 Amps rms

Test conditions INPUT:100V OUTPUT:Full load

Max. input power

W

150

OUTPUT

Rating output voltage

V dc

42V

Output voltage range

V dc

30VDC ~ 45VDC

Suit with Battery type

36V 17~20 Ah VRLA

Charging current ( stage 1)

A

3± 0.3@38V

Charging voltage (stage 2)

V

44.2V +-0.2V

Floating voltage (stage 3)

V

41.7V+-0.3V

Cut-off current(stage 2¹3)

A

<0.6+-0.06A

Maintenance mode

May be left on the battery to maintain the battery in a float condition

Typical charging time

hour

8

Max. output power

W

130W

Inner timer

hour

3.0 hours @ I<2A

Test conditions Input: 100Vac Output: Full load

Ripple current

mA

200

Test conditions Input: 100Vac Output: Full load

Charge finish condition

V>43V + I<0.6A or timer out

LED color

Red: charging Green: finish/idle

Output protect

OCP & OVP

Efficiency

%

80%

At max. load

Environment

Operate temperature

·C

-10 ~ +40

Full load & natural convection.

Operate humidity

%RH

< +90

Relative humidity, non-condensing.

Storage temperature

·C

-40 ~ +70

Storage humidity

%RH

0 ~ +95

Relative humidity, non-condensing.

Cooling

Fan cooling

Temperature factor

%

-

Vibration resistance

5MM/50HZ/600S

Non-operating condition.

Impact resistance

?

Non-operating condition.

Mechanical

Weight

g

570g, 1.25 lbs

Size

mm

187X99X61 mm

7.4 x 3.9 x 2.4 inches

Casing only

Connectors

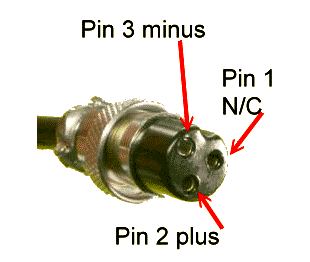

Aligator clips or Minimoto connector as ordered

Max. temperature rise

·C

< 40 on casing

At any line and Max. Load

Safety standards

UL1310
